Explore the LS6870AE and LS6870BE lighting families. Combine modular luminaires, pre-wired trunking rails and selected optics to plan a coordinated commercial or industrial lighting system.
LS6870AE / LS6870BE · 600 / 1200 / 1500 mm nominal · ON/OFF / 0–10V / DALI-2 control options (configuration dependent)
Explore the LS6870AE / LS6870BE platform, from pre-wired trunking sections and lighting modules to functional inserts, connectors and mounting accessories. Use the system diagram to identify the component groups for your project.

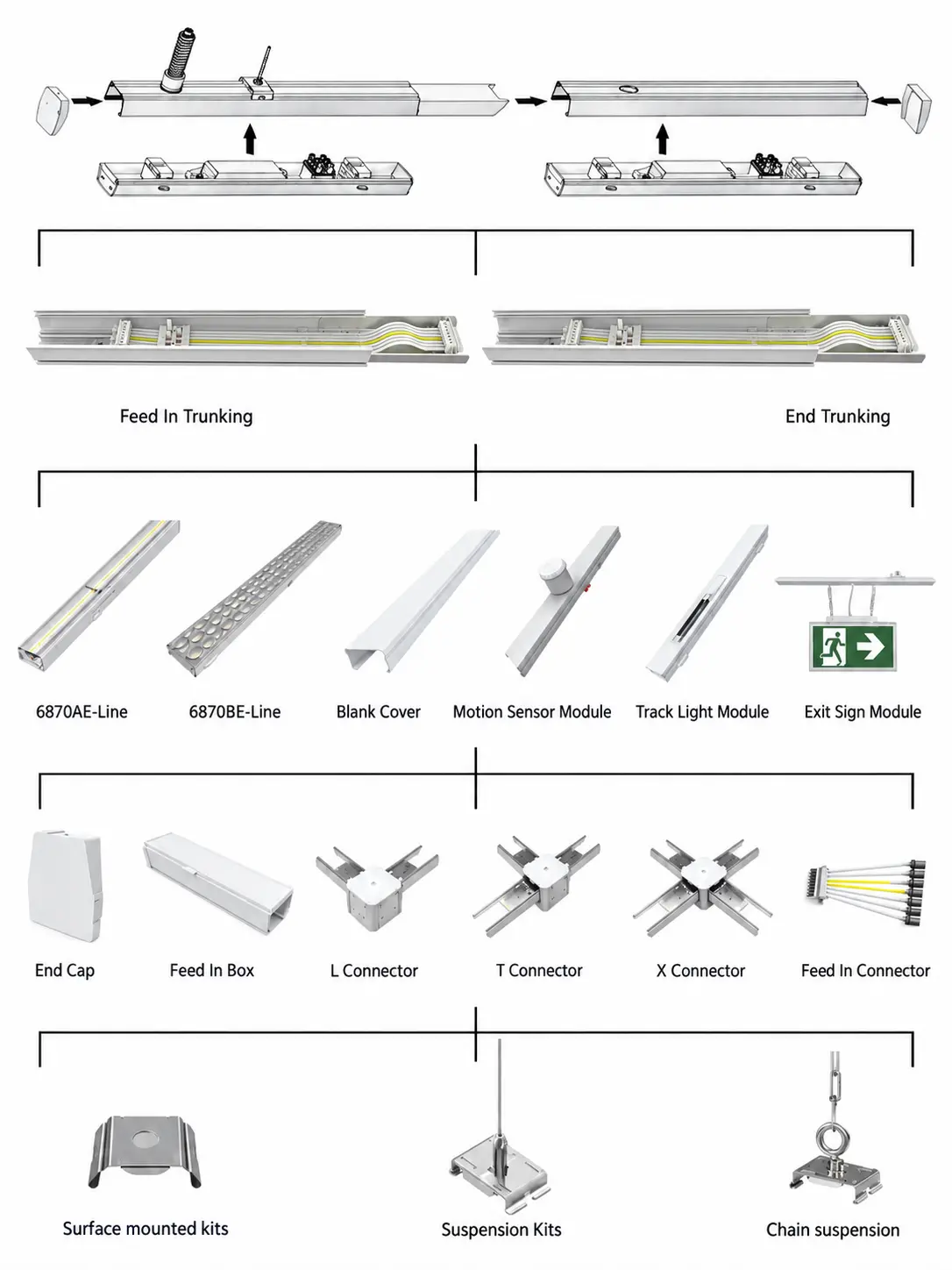

Click or tap the diagram to view its component labels at a larger size. The illustration shows available component groups; exact electrical arrangements and combinations are confirmed for each project.
The diagram shows feed-in and end trunking sections with internal wiring. Feed arrangement and conductor configuration are reviewed per project.

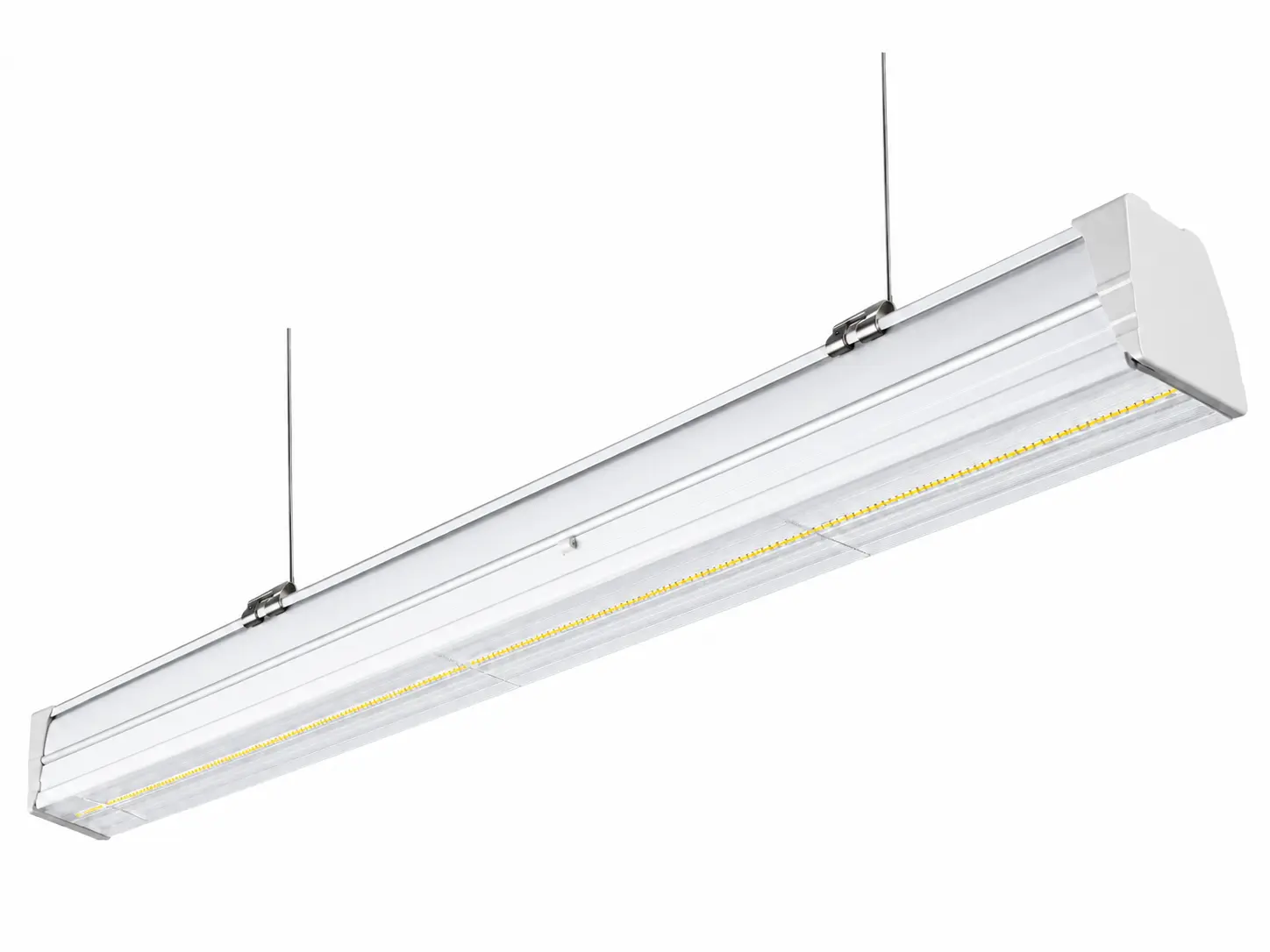

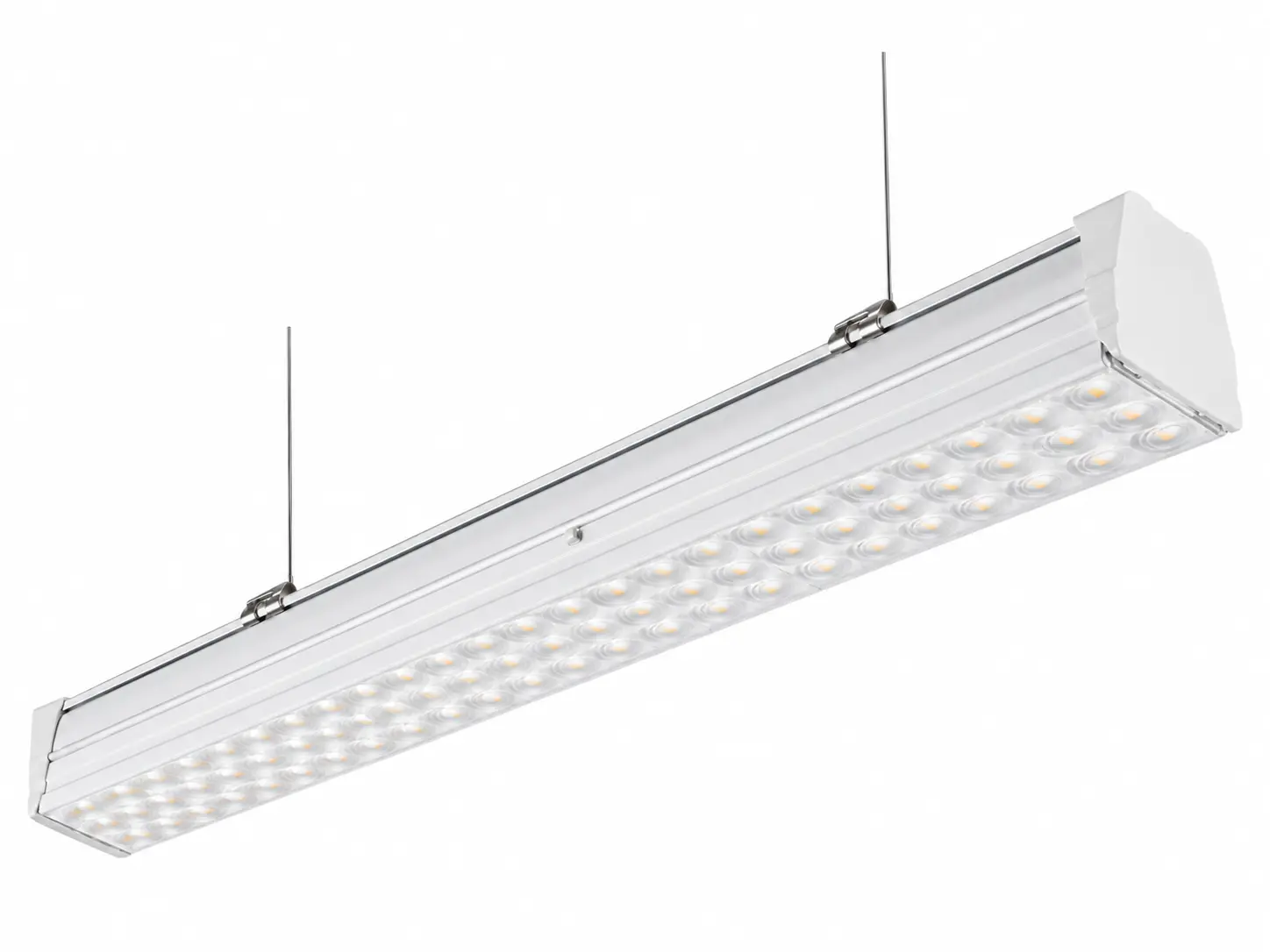

LS6870AE continuous optics and LS6870BE individual-lens optics are illustrated. Select the luminaire family and nominal length for your layout.

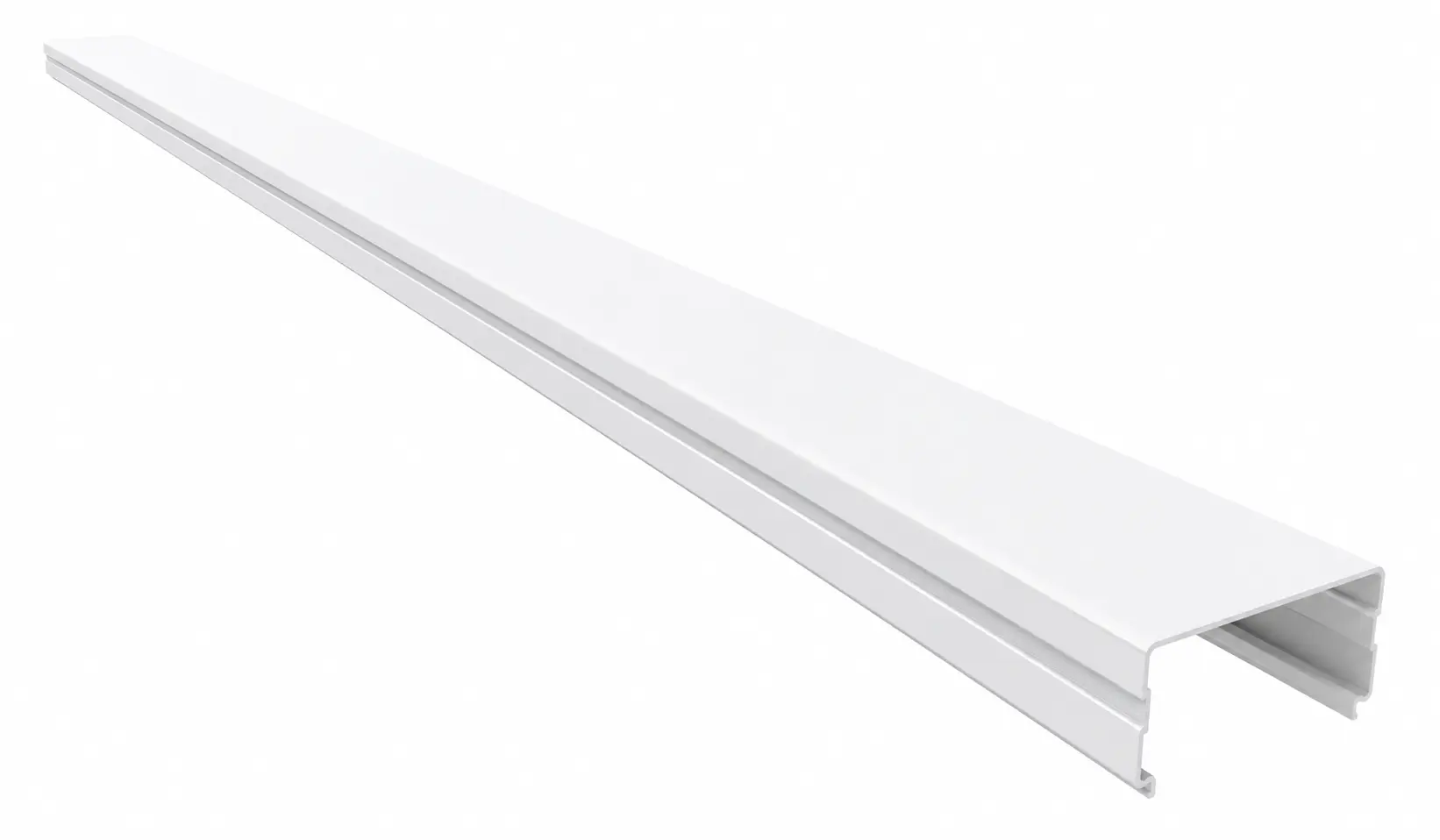

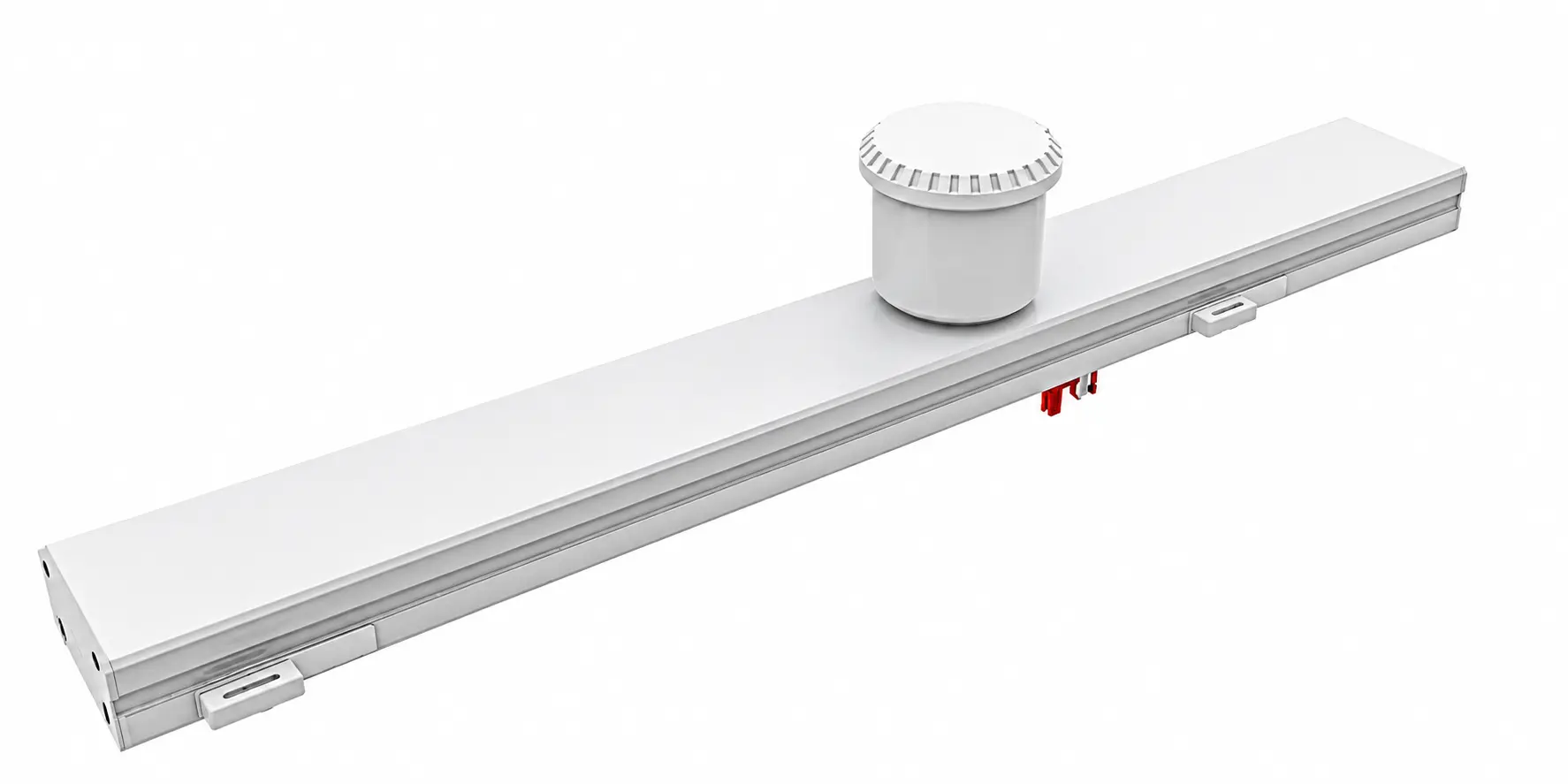

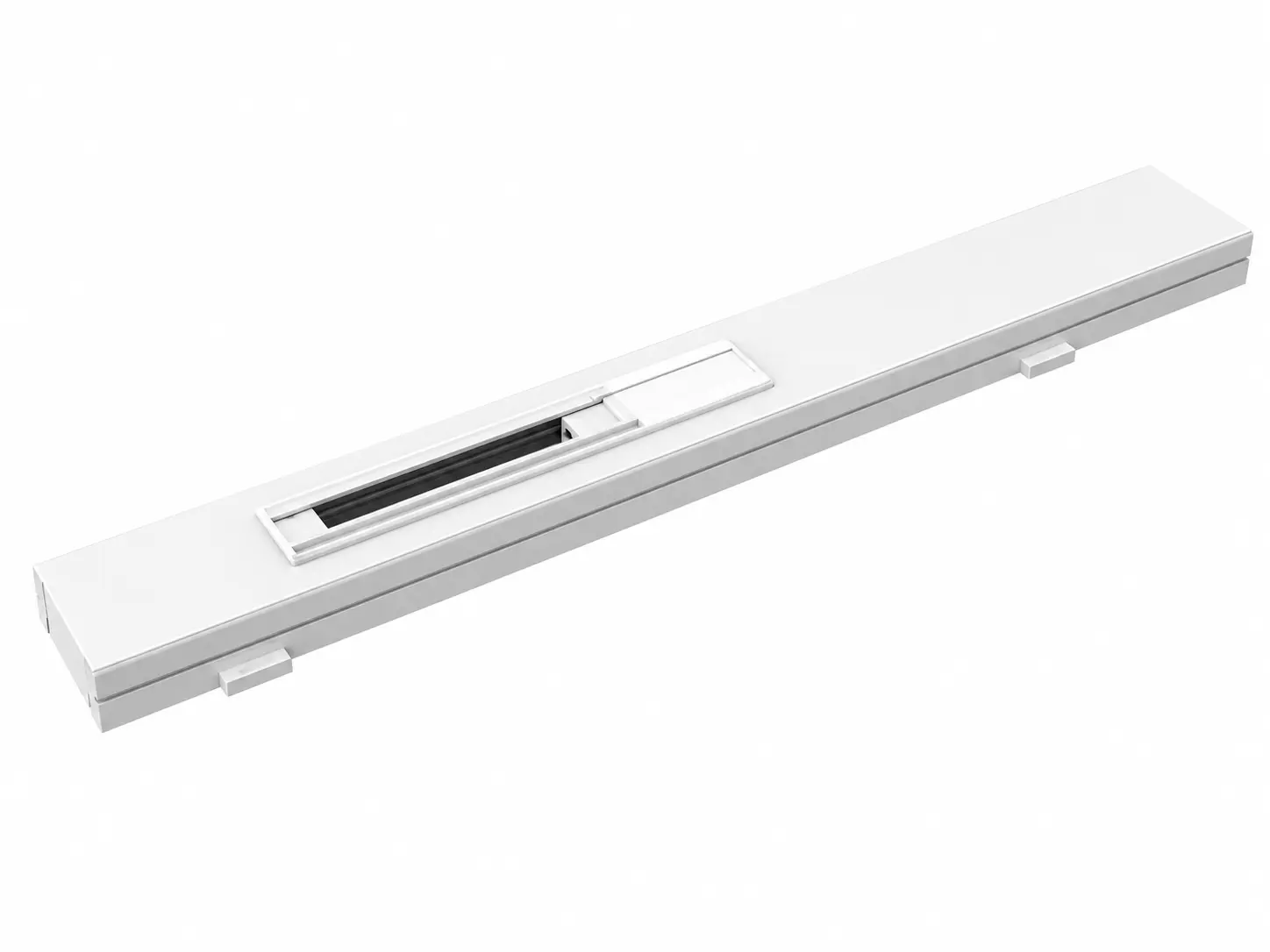

Blank cover, motion sensor, track light and exit sign modules are illustrated. Confirm availability and compatibility with the chosen system.

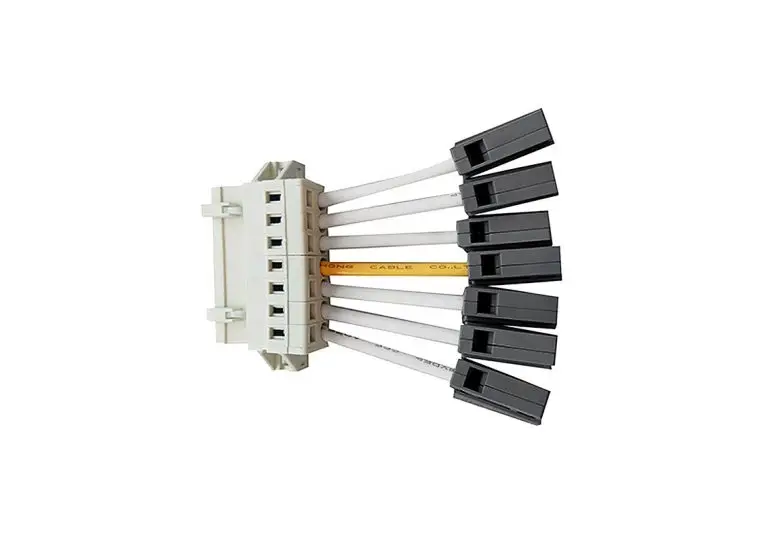

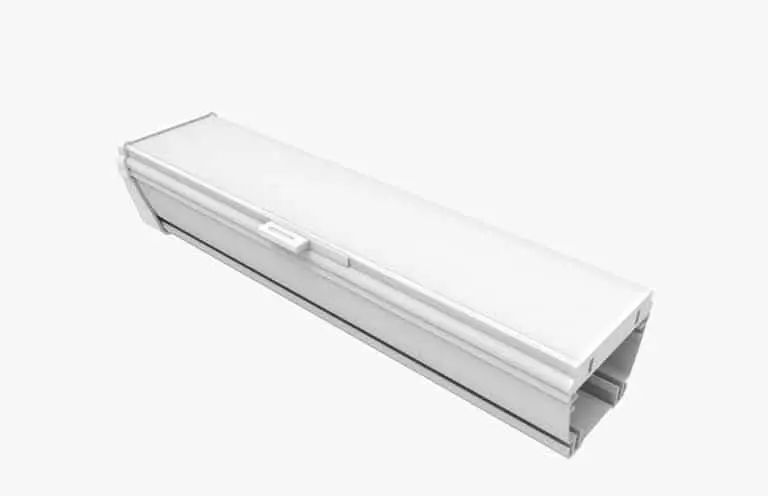

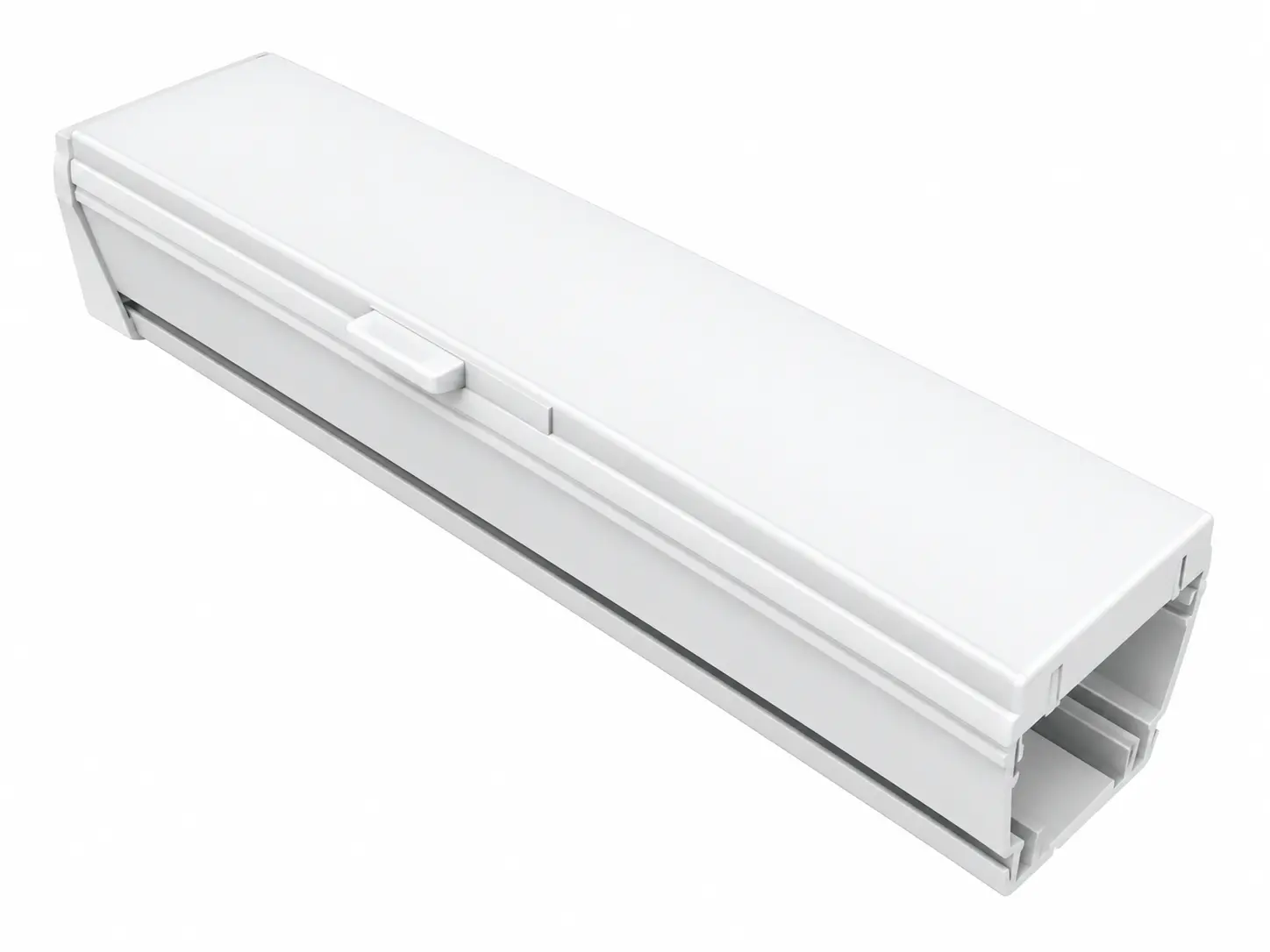

End caps, feed-in parts, L / T / X connectors and surface or suspension accessories are shown. Final combinations depend on the project.
Planning a continuous-row installation? Share your floor plan, mounting height and control requirements. Topsund will review the compatible luminaires, rails and accessory list before quotation.
Two optical designs, the same three nominal length platforms. Choose a continuous line appearance or a wider range of individual-lens beam options.
Streamlined continuous linear appearance, with 60°, 90°, 120° and left/right asymmetric 25° options.
Nominal lengths: 600 / 1200 / 1500 mm
Multi-lens arrangement with additional 30° and double-asymmetric 25°/30° distributions.
Nominal lengths: 600 / 1200 / 1500 mm
| Model | Nominal size | Power options | Dimensions (L × W × H) |
|---|---|---|---|

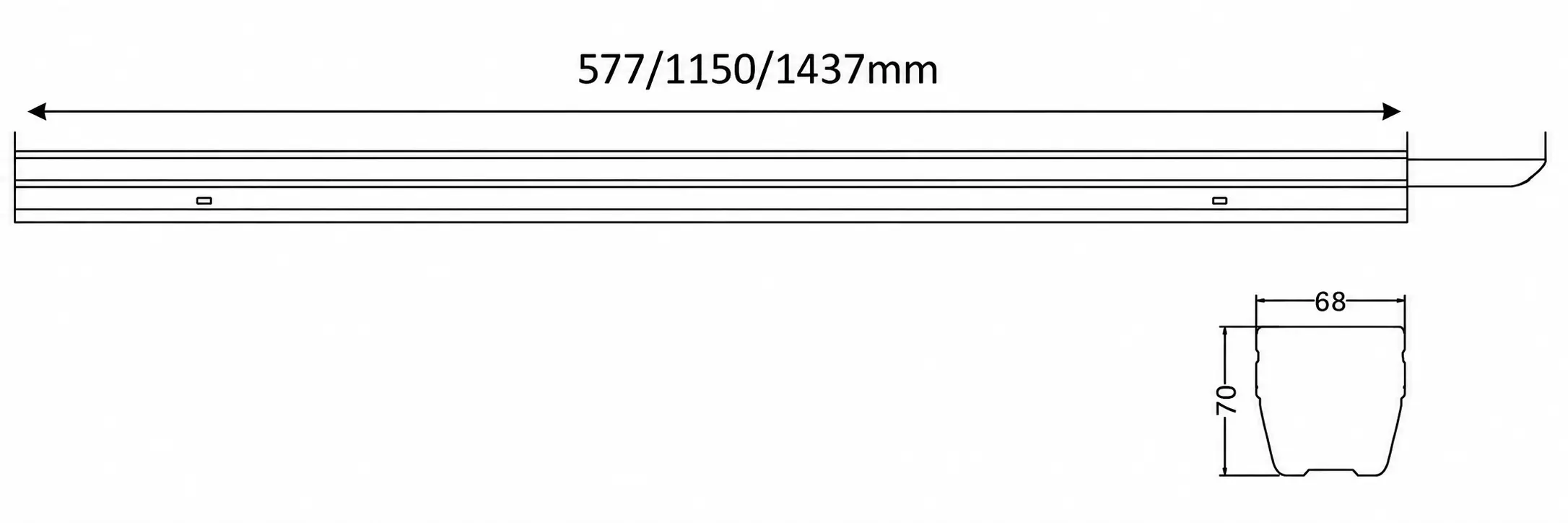

| LS6870AE-600 | 600 mm | 16 / 20 / 24 / 30 W | 577 × 68 × 70 mm |
| LS6870AE-1200 | 1200 mm | 24 / 30 / 35 / 40 W | 1150 × 68 × 70 mm |
| LS6870AE-1500 | 1500 mm | 36 / 45 / 55 / 60 W; 60 / 65 / 70 / 75 W | 1437 × 68 × 70 mm |
| LS6870BE-600 | 600 mm | 16 / 20 / 24 / 30 W | 577 × 68 × 70 mm |
| LS6870BE-1200 | 1200 mm | 24 / 30 / 35 / 40 W | 1150 × 68 × 70 mm |
| LS6870BE-1500 | 1500 mm | 36 / 45 / 55 / 60 W; 60 / 65 / 70 / 75 W | 1437 × 68 × 70 mm |
The 1500 mm power options are listed in two groups in the 2026 supplier catalog. Hardware and DIP settings must be confirmed before ordering. The offered efficacy options (130 / 150 / 180 lm/W) depend on configuration.
AE and BE share several beam options. The BE family offers additional focused and double-asymmetric configurations.

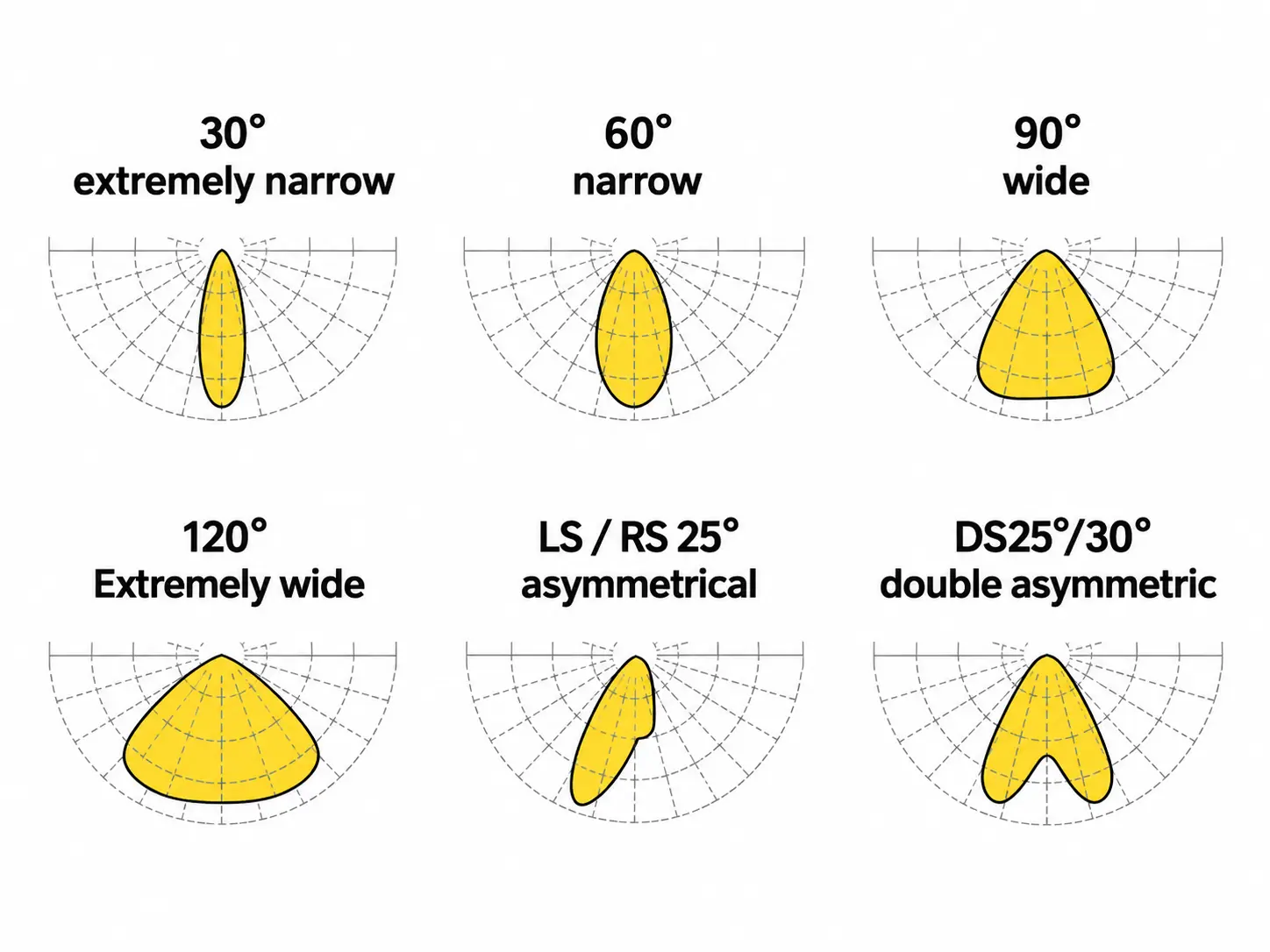

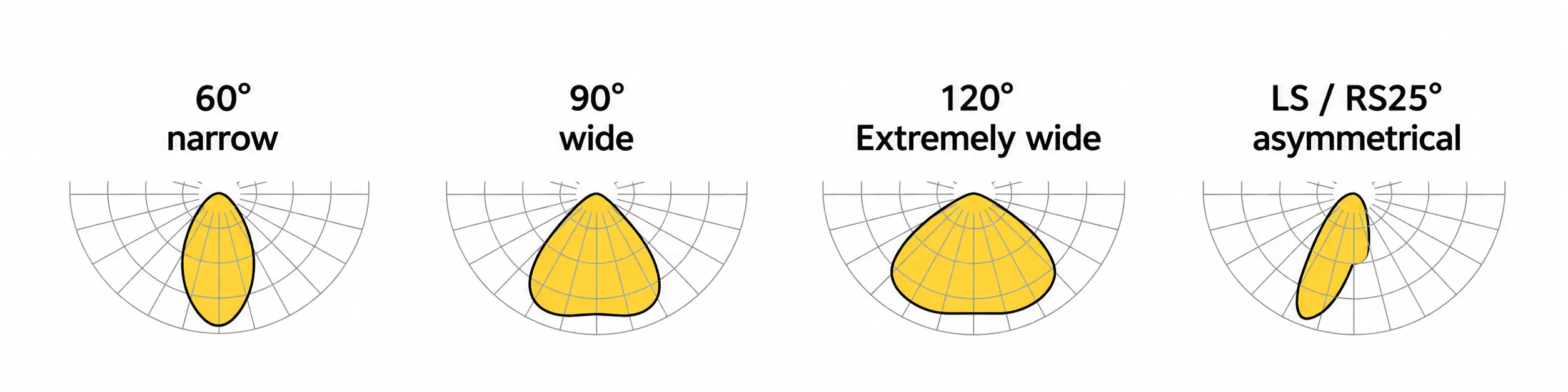

60° Narrow · 90° Wide · 120° Extra-Wide · LS / RS 25° Asymmetric
30° Focused · 60° Narrow · 90° Wide · 120° Extra-Wide · LS / RS 25° Asymmetric · DS 25°/30° Double Asymmetric
These are optical options from the supplier catalog, not substitutes for IES/LDT photometric verification. Final selection should consider mounting height, spacing, illuminance and uniformity.
Enter your name and work email to receive the current linear trunking catalog. For LS6870AE / LS6870BE technical documentation and configuration details, send your project requirements through the quotation form.
MODEL & OPTICAL OPTIONS
Compare the AE and BE series, available sizes, power and optical options.
SYSTEM COMPONENTS
Review rail, connection, mounting and relevant electrical configurations.
DELIVERED BY EMAIL
Use the catalog in your supplier evaluation and technical review.
The current catalog is delivered by email. For the latest LS6870AE / LS6870BE technical details, please contact Topsund with your required configuration.
The system catalog lists 3-, 5-, 7-, 8- and 12-core rail arrangements. Electrical functions and accessory compatibility depend on the selected configuration.
Pre-wired rail arrangements, power feed positions and control conductors should be evaluated as one electrical system.

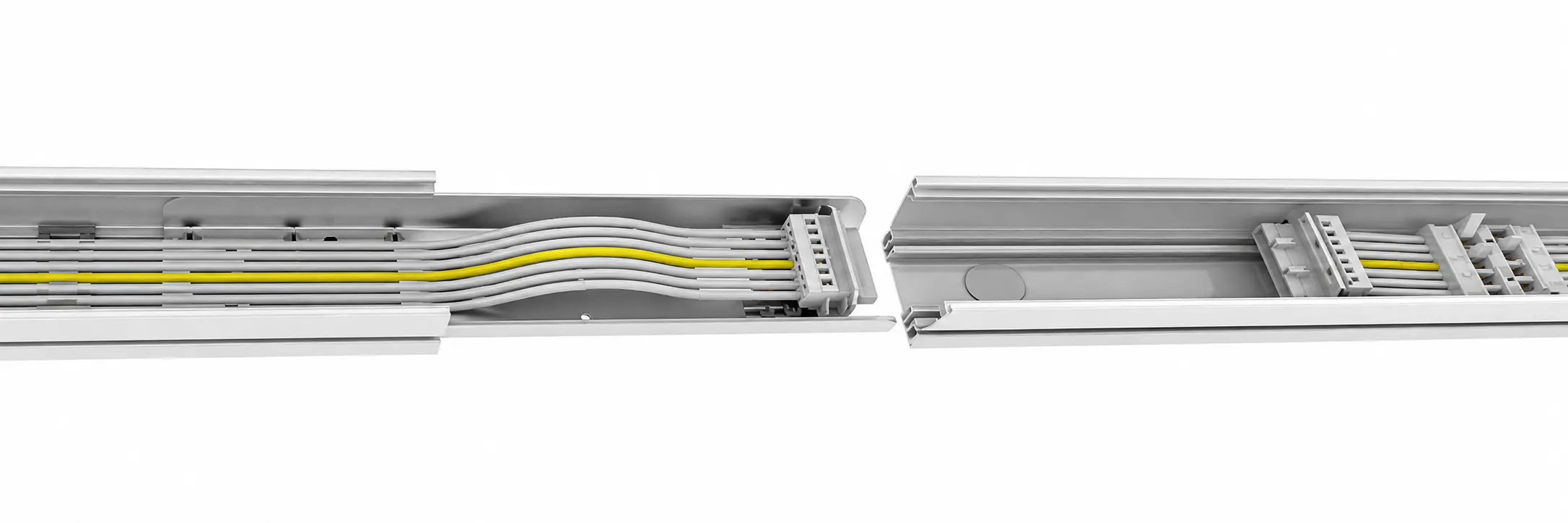

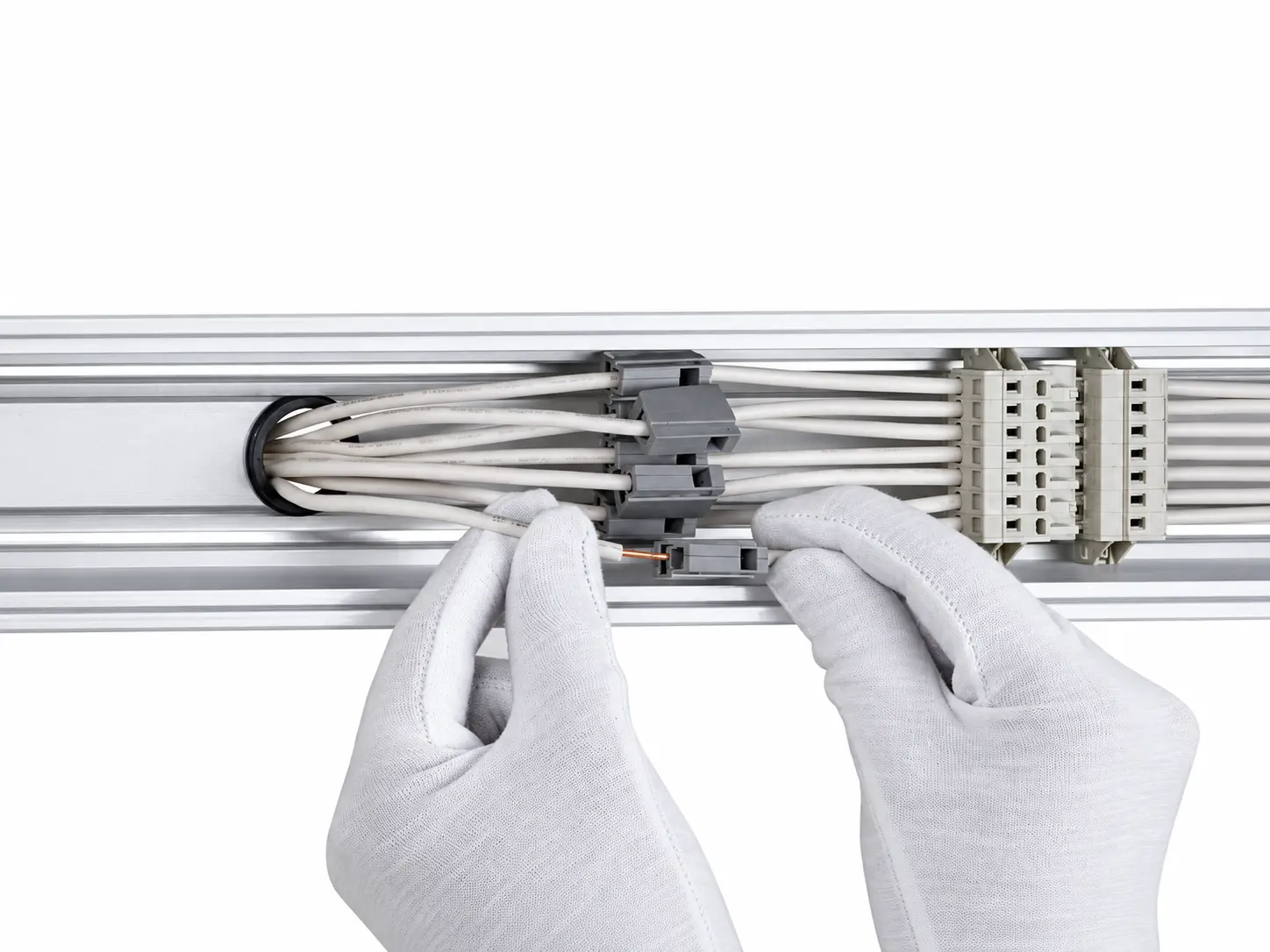

Use compatible luminaire inserts, supports and rail connectors. The installation sequence must follow the correct component documentation.

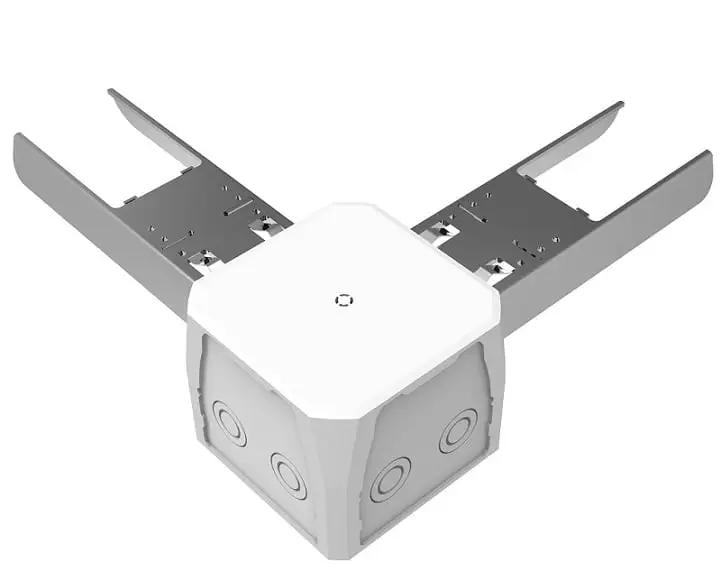

Corner transitions.
Three-way branches.

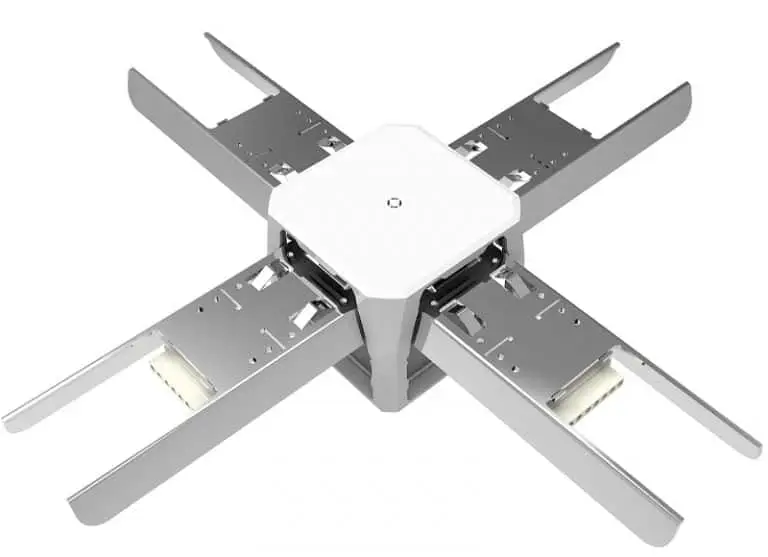

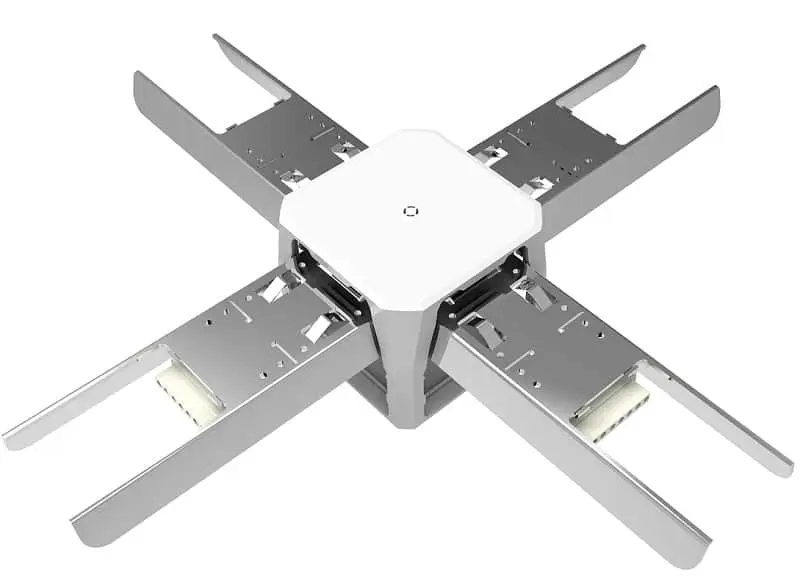

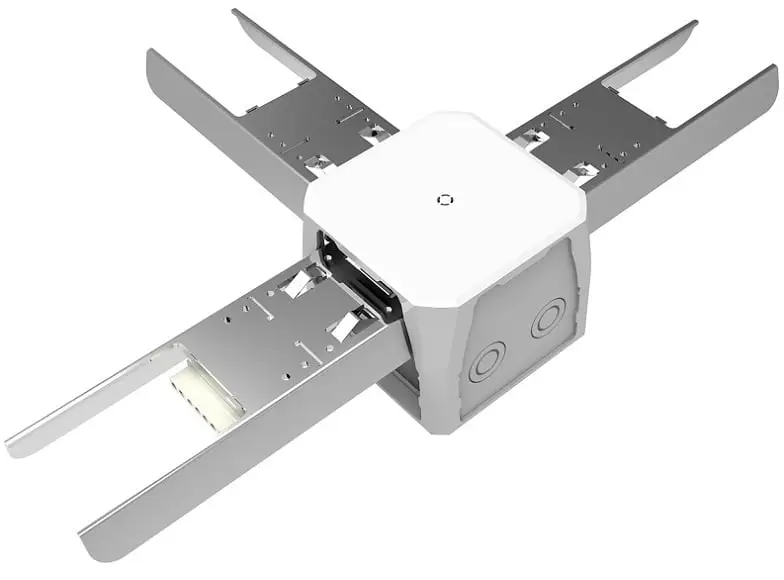

Four-way intersections.

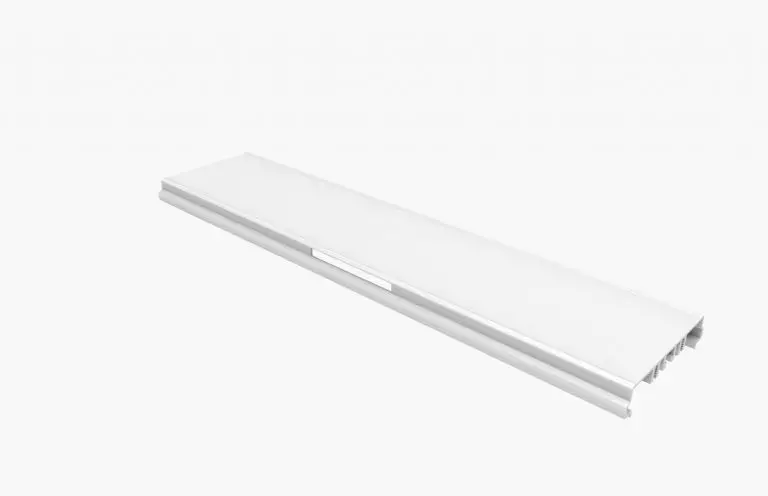

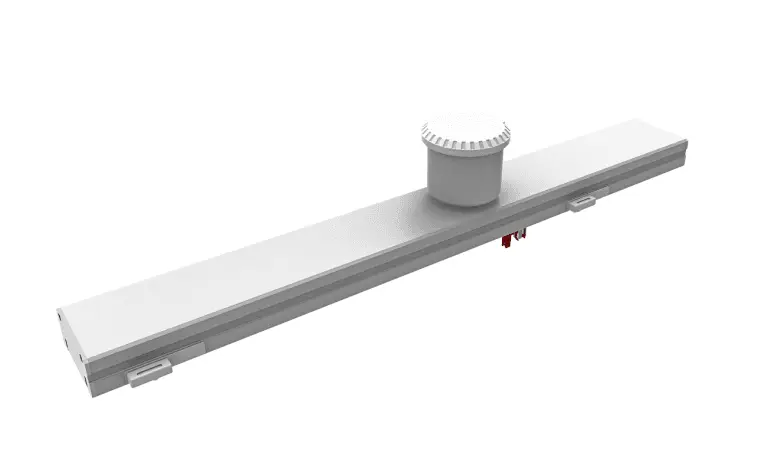

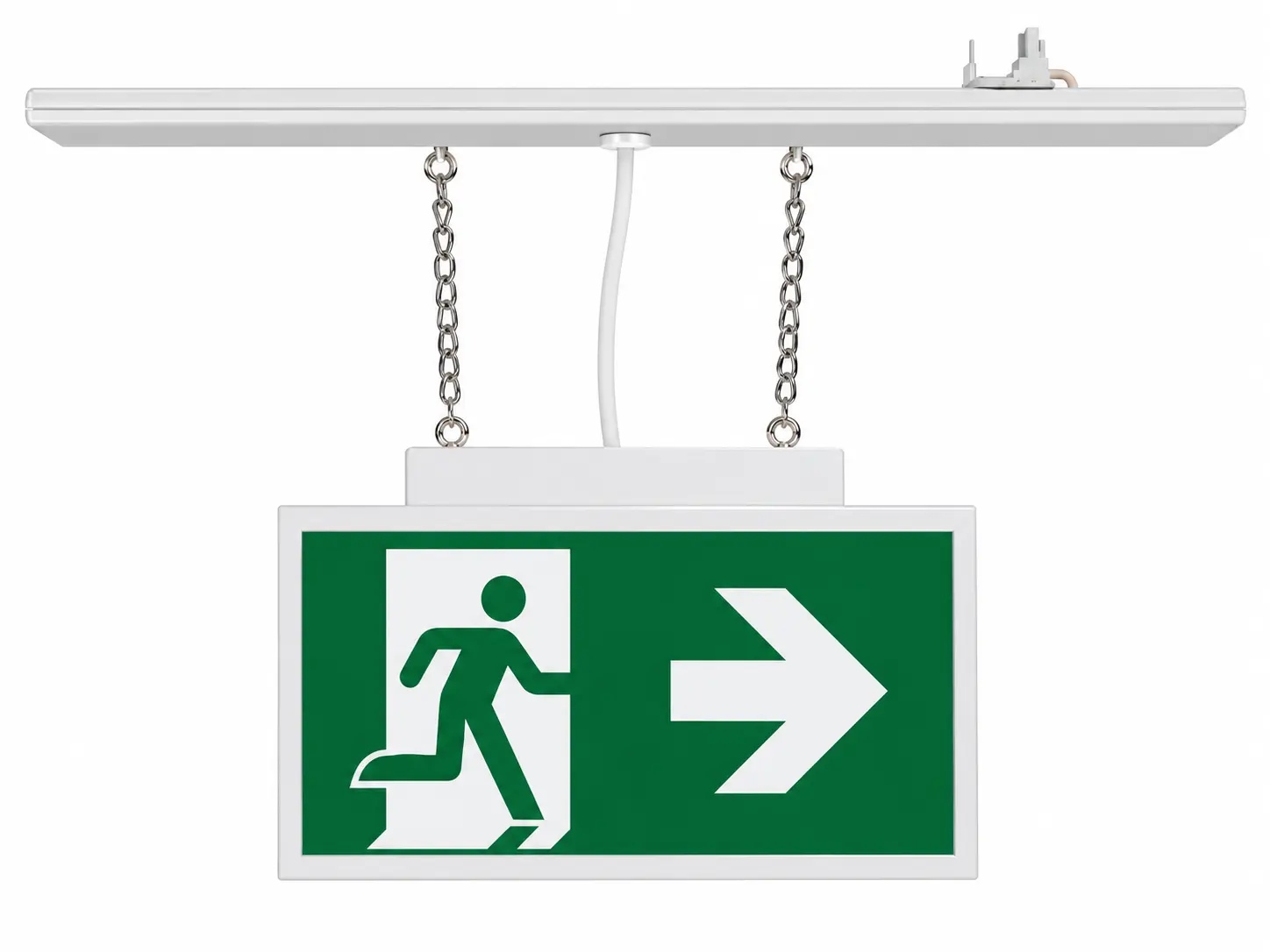

The supplier documentation also illustrates sensor, spotlight, blank cover, emergency-luminaire and exit-sign options. Their actual compatibility and availability must be confirmed for the specified rail and driver. An emergency luminaire incorporates an emergency module within the luminaire assembly; it is not a separate hanging emergency lamp.
DALI-equipped luminaires in the Topsund range use DALI-2 control. Applicable drivers, rail wiring and configuration compatibility must be confirmed per project. Formal DALI-2 product certification status is verified separately for each model/driver.

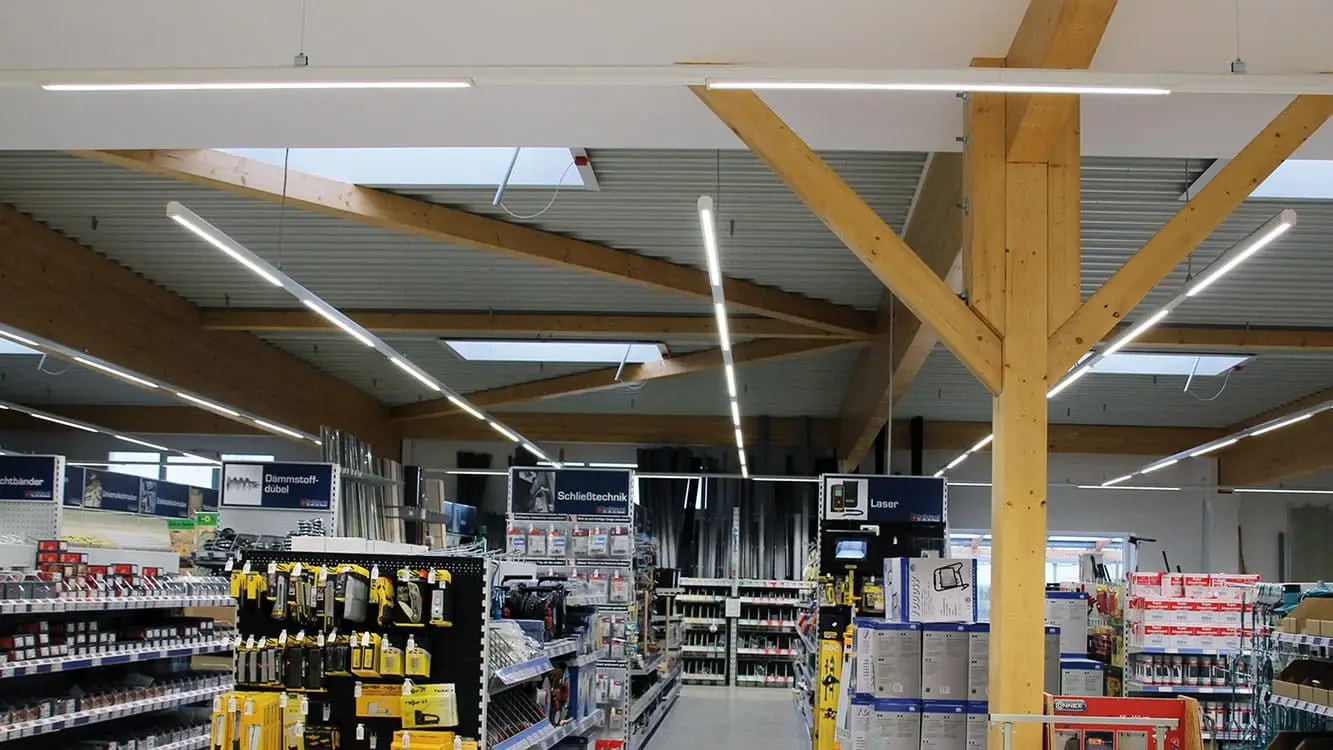

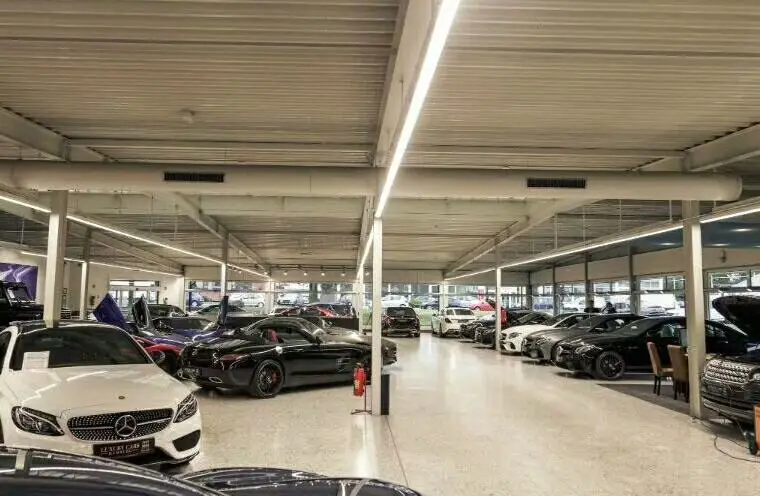

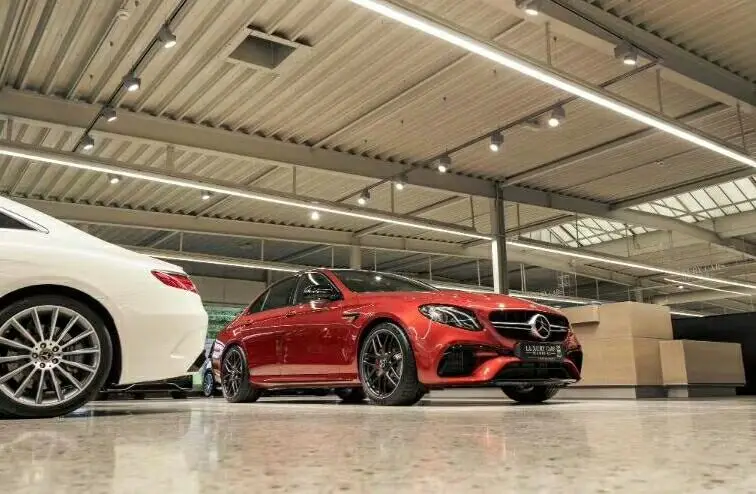

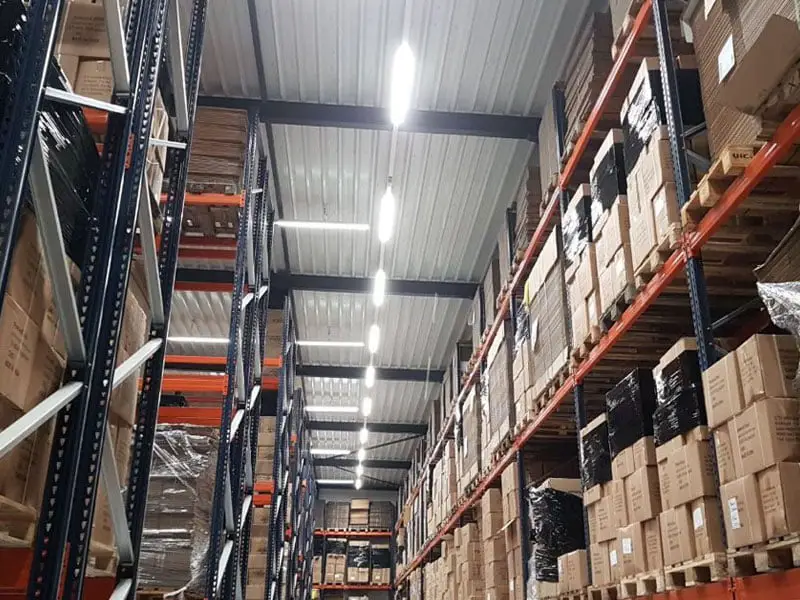

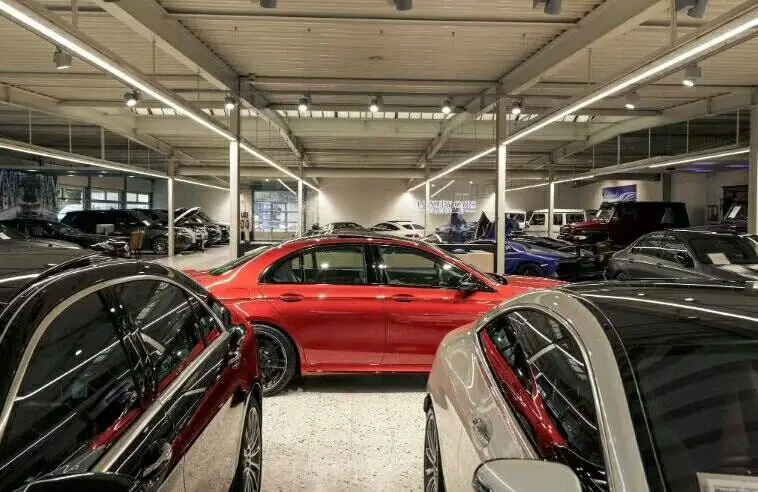

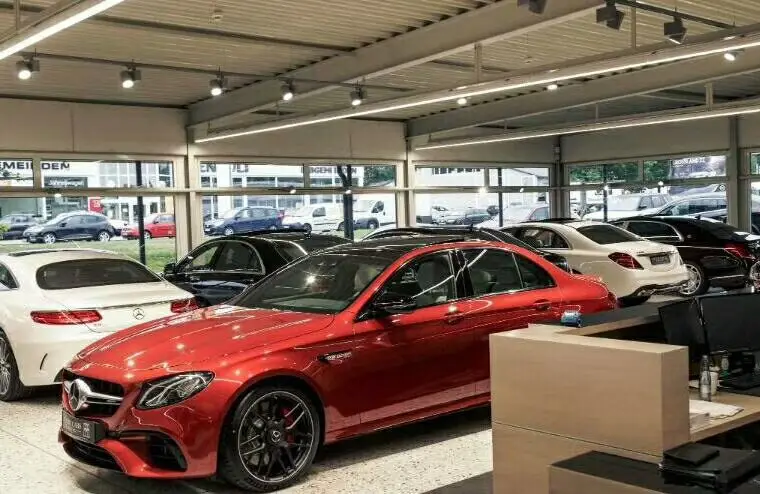

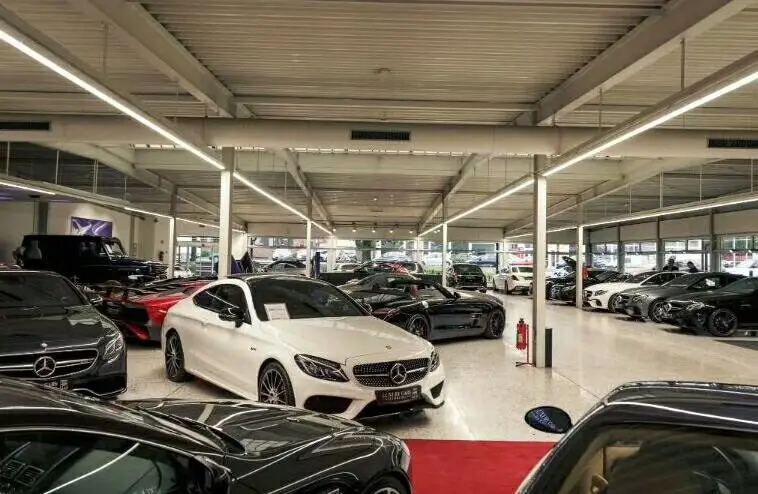

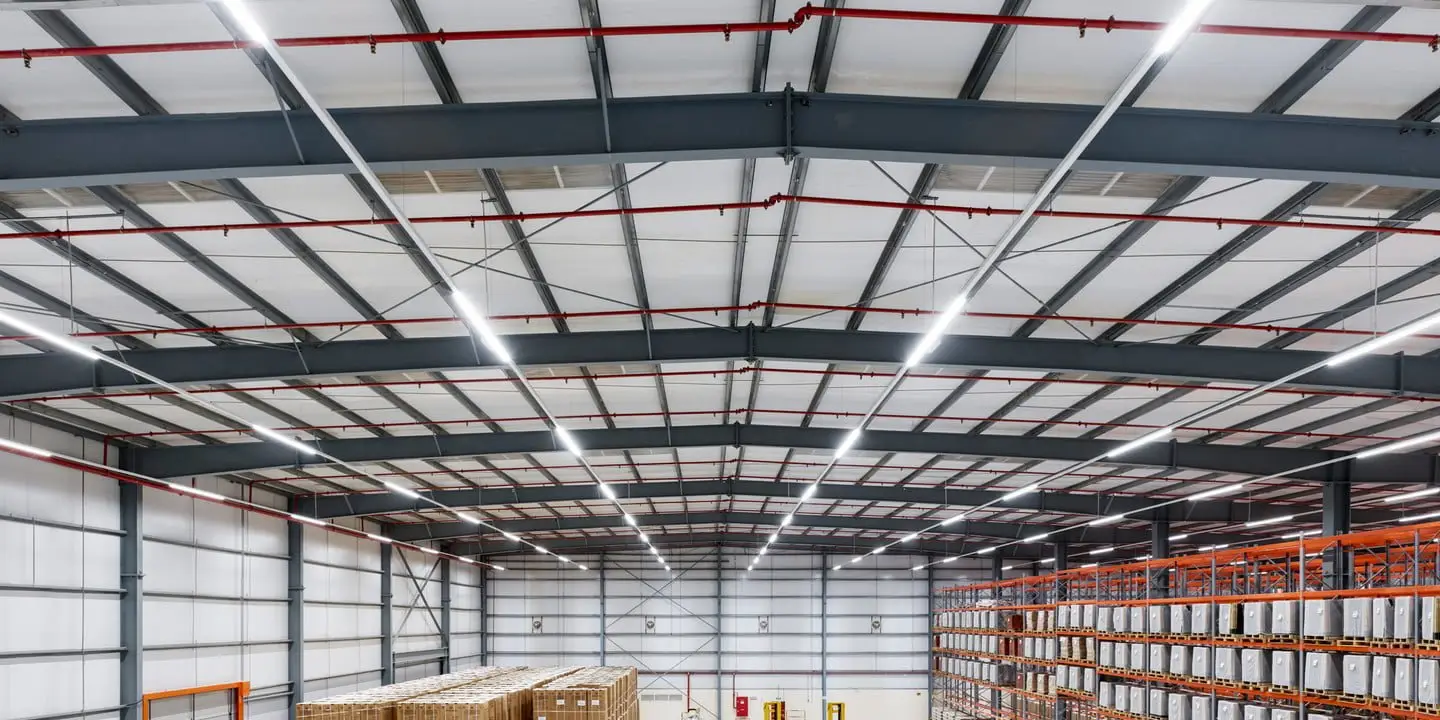

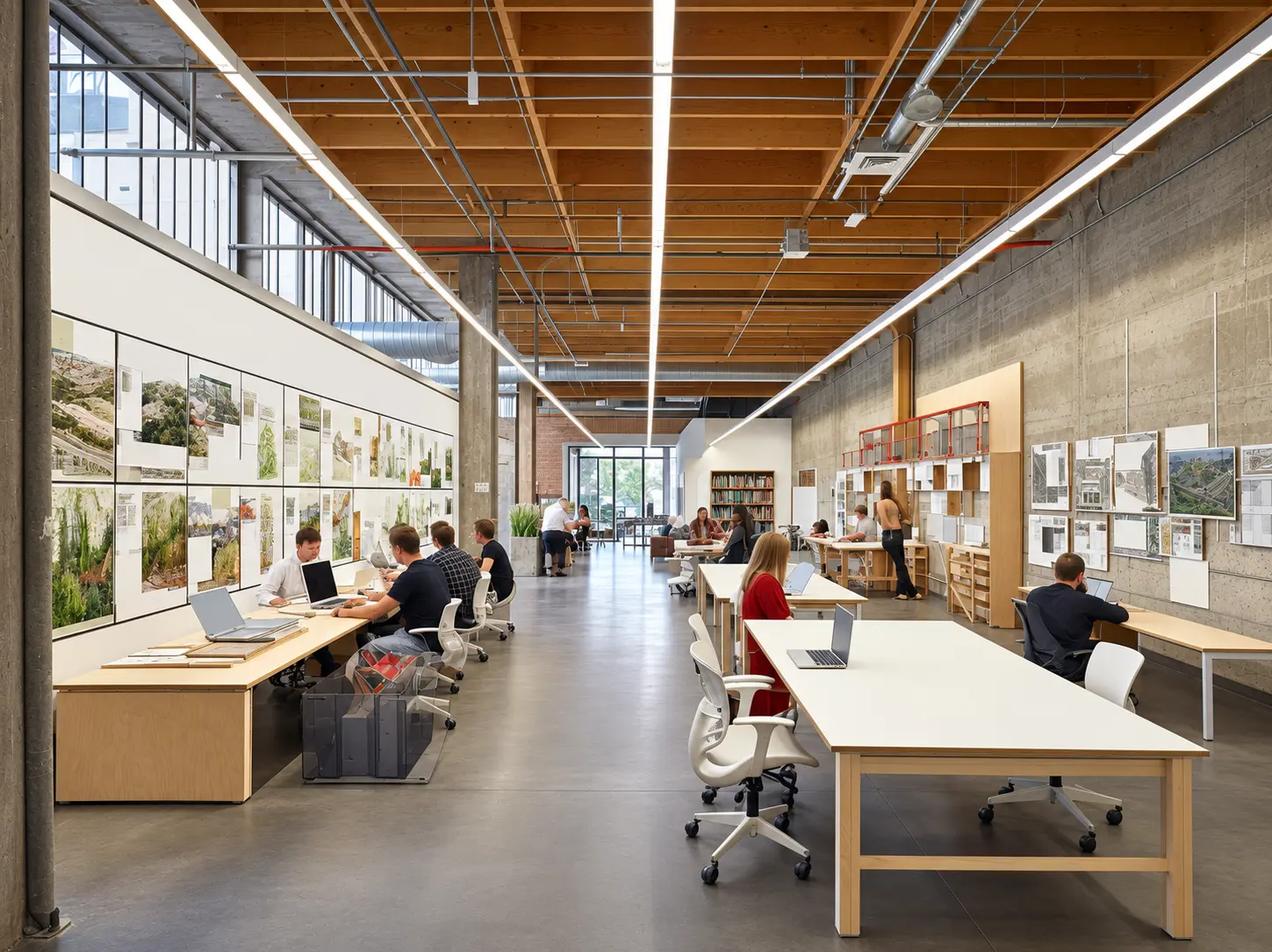

Continuous-row trunking offers a coordinated approach to lighting appropriate warehouses, retail aisles, production facilities and commercial interiors.
Modular continuous-line lighting for suitable large indoor working and circulation spaces.

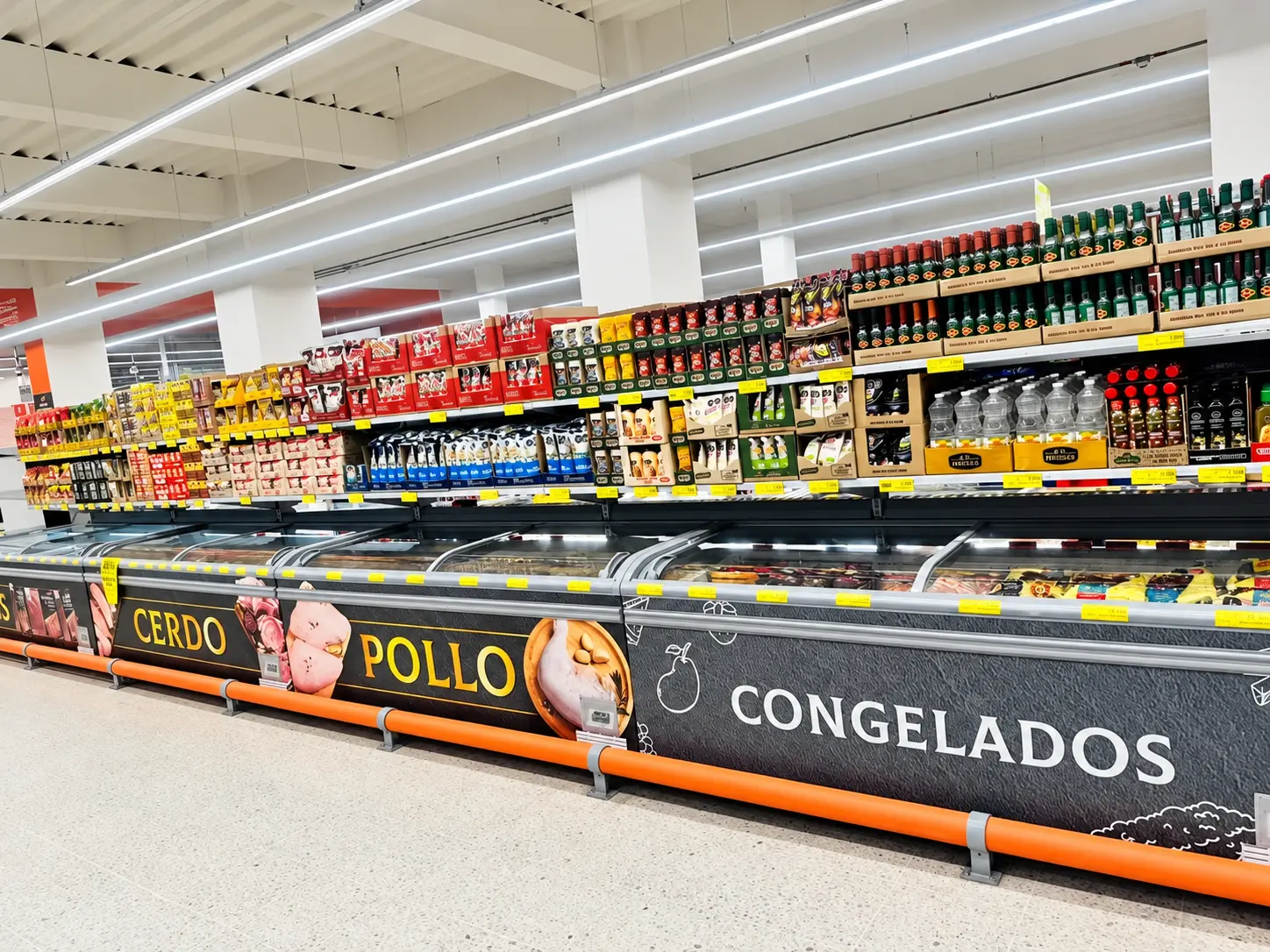

Wide and asymmetric optical selections for general lighting and suitable shelf-facing applications.
AE has continuous linear optics. BE uses individual lenses and adds 30° and double-asymmetric distributions.
No. This is a modular luminaire and pre-wired rail lighting system, not an empty cable duct or LED strip profile.
Yes. Topsund offers DALI-2 control on applicable luminaire configurations. Rail wiring, driver compatibility and available combinations must be checked for the project. Formal DALI-2 certification status is verified separately for the exact model and driver.
These functional modules are illustrated in the catalog, but compatibility and availability must be confirmed for each project.
It depends on power selection, circuit loading, conductor ratings and the protective electrical design. A project-specific calculation is required.
Send your installation height, building layout, approximate line lengths, required optics, control method and project quantity. We can review available AE / BE configurations and coordinated components before quotation.
Have a technical question? Include your drawing or product requirements in the enquiry. Product availability, wiring compatibility and project terms are confirmed before supply.
