TOPSUND M20 · DC48V FOUR-WIRE SYSTEM
Topsund M20 combines four installation profiles with compatible lighting modules and project-specific control options.
We support lighting distributors, contractors and system integrators with system selection, component matching and coordinated project supply.
M20 SYSTEM PLATFORM
DC48V · FOUR-WIRE SYSTEM · MODULAR LIGHTING
Topsund M20 is a coordinated DC48V four-wire magnetic track platform, bringing track profiles, power supplies, compatible lighting modules and control options together in one architectural lighting system.
Choose from surface-mounted, suspended, trimless and recessed-with-trim installations. Lighting modules and control methods can be selected to match different architectural and project requirements.
From component selection to sample verification, we help lighting distributors, contractors and system integrators confirm compatible system configurations before ordering.
03 / M20 TRACK PROFILES
Four installation profiles for distinct ceiling details.
M20A
For visible surface installations and suspended track layouts.
Top width 26.5 mm · Body width 23 mm · Height 54 mm · Inner width 17 mm
M20B
A flush architectural finish for planned recessed ceiling construction.
Top width 32.2 mm · Body width 23 mm · Height 54 mm · Outer width 66 mm · Inner width 17 mm
M20C
Trimless clip-in option designed for ceilings with 12 mm thick panels.
Top width 32.2 mm · Body width 23 mm · Height 54 mm · Outer width 66 mm · Inner width 17 mm
M20D
A recessed profile with a visible perimeter trim for standard ceiling installation.
Top width 26.5 mm · Body width 23 mm · Height 54 mm · Outer width 66 mm · Inner width 17 mm
All profiles shown belong to the Topsund M20 system. Verify accessories, cut-outs, fixing details and ceiling conditions against the approved project drawings.
04 / SYSTEM ARCHITECTURE
Tracks, lighting and power—designed to work together.
Specify the magnetic track, power feed, connectors, compatible lighting modules and required control method as one coordinated package.
Core components · M20 track profiles · Power supply and feed · Connectors and accessories · Magnetic luminaires · Project-specific control devices

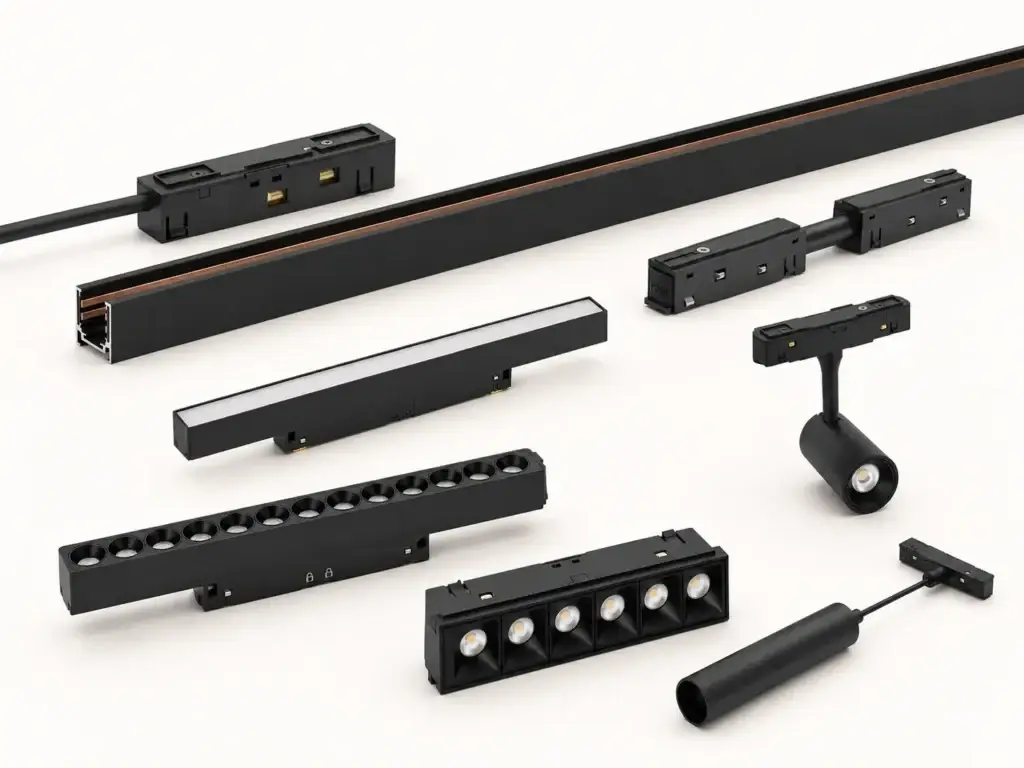

M20 system components overview
POWER DISTRIBUTION
The SD-10048 compact power supply can be arranged inside a compatible M20A track in the illustrated configuration. It is not shown as an external wall-mounted driver.
An external 48V supply may be planned for other project layouts. The selected track profile, total luminaire load, electrical protection and control architecture determine the final power arrangement.
Typical path: AC input → selected 48V power supply → track power conductors → compatible luminaires.
Illustrative M20A in-track power arrangement; project wiring and ratings must be verified.
05 / M20 LIGHTING MODULES
From precise accents to continuous architectural light.
DIRECTIONAL ACCENT LIGHTING

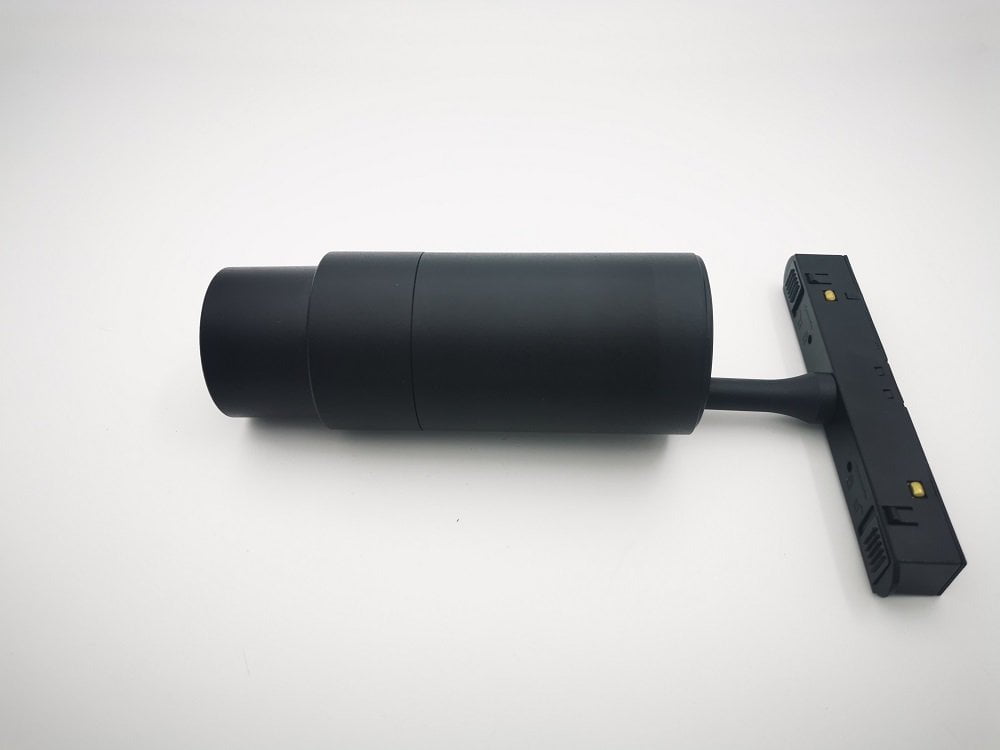

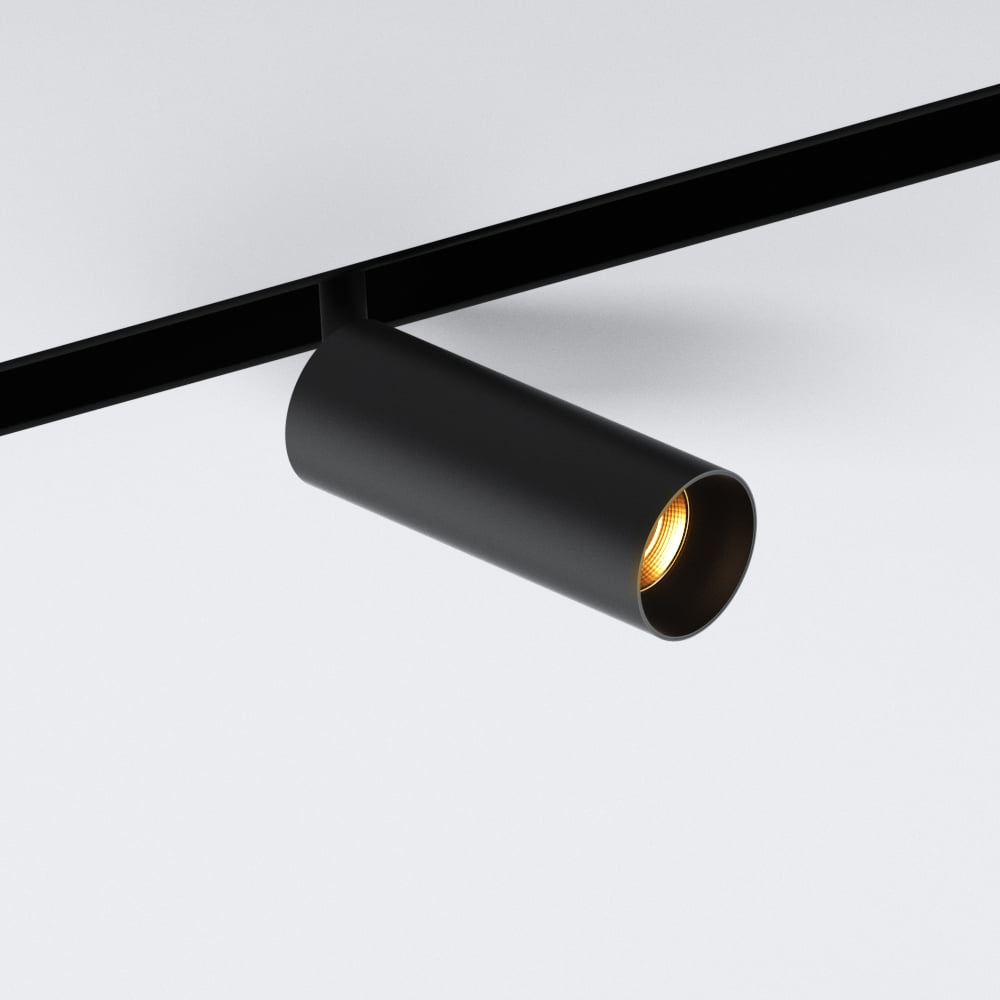

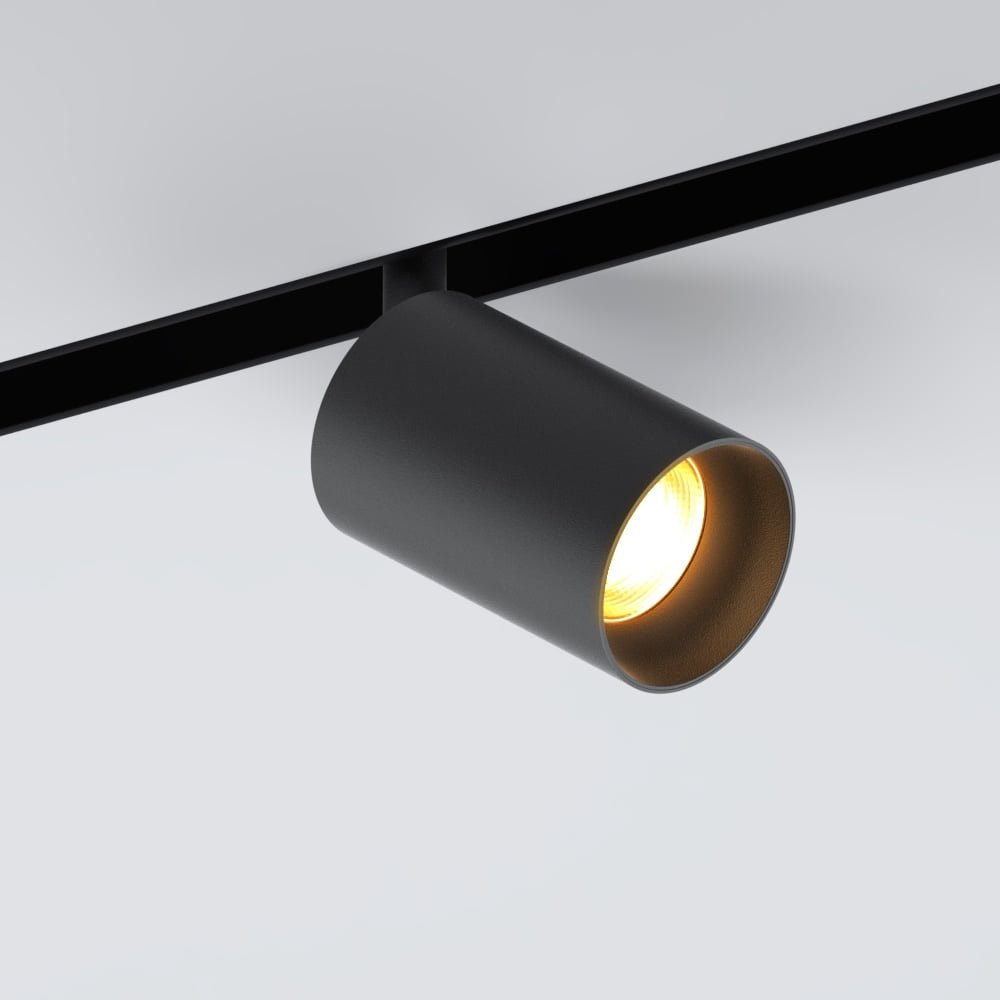

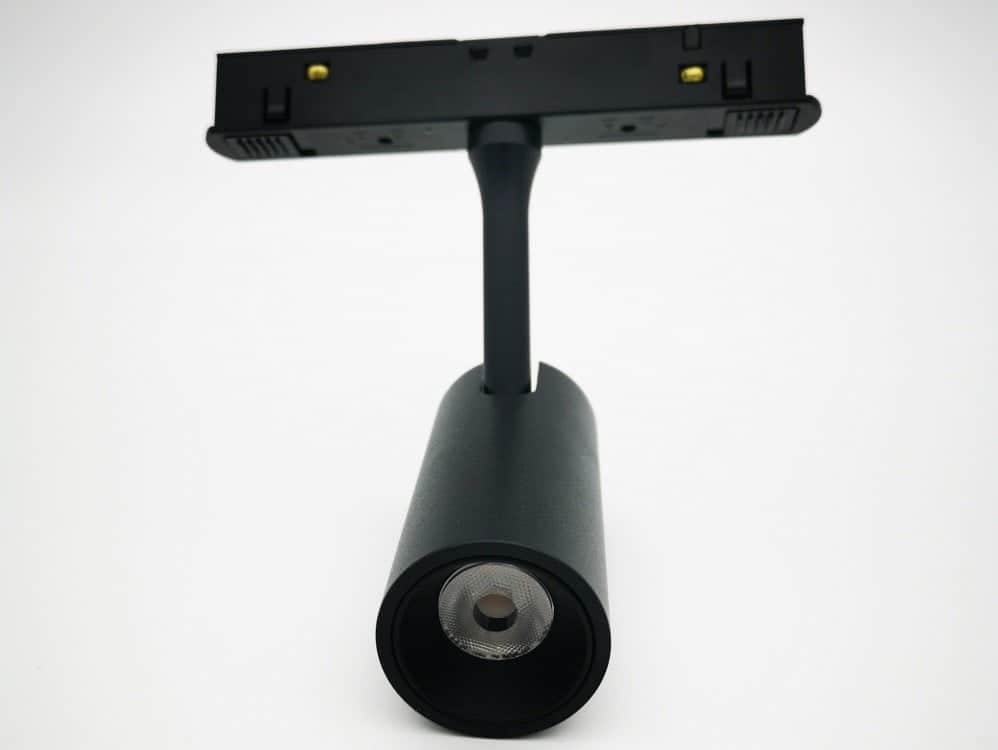

Ø45 mm directional spotlight with a 15°–55° adjustable beam for flexible accent lighting.
GENERAL ILLUMINATION
Continuous linear illumination for corridors, living spaces and commercial interiors.
FOCUSED LIGHTING

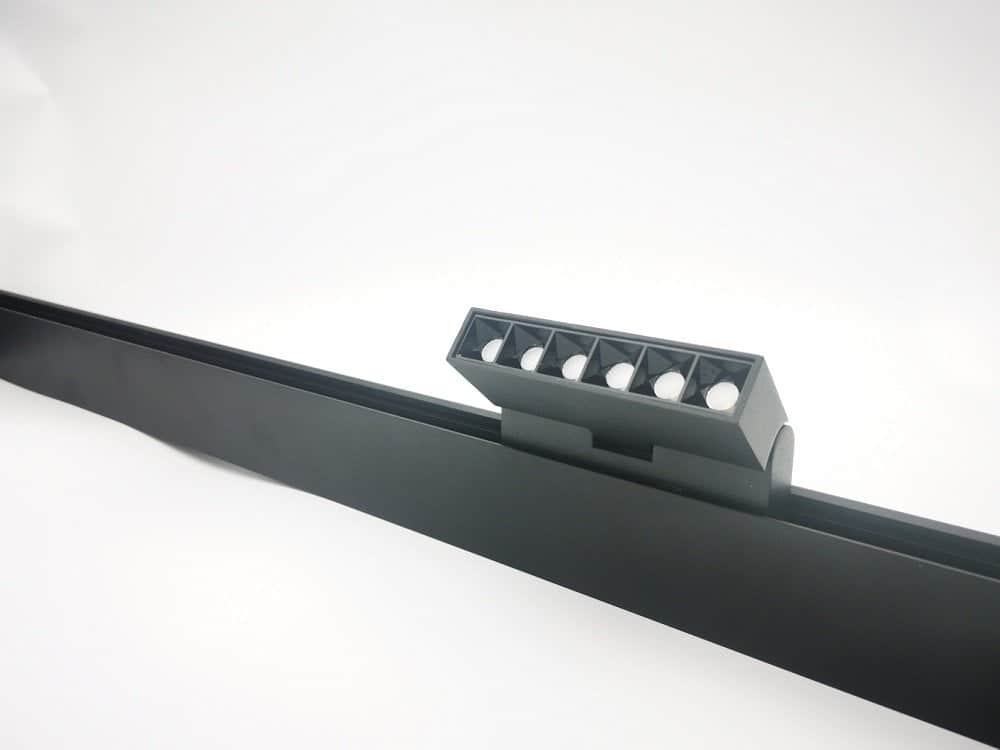

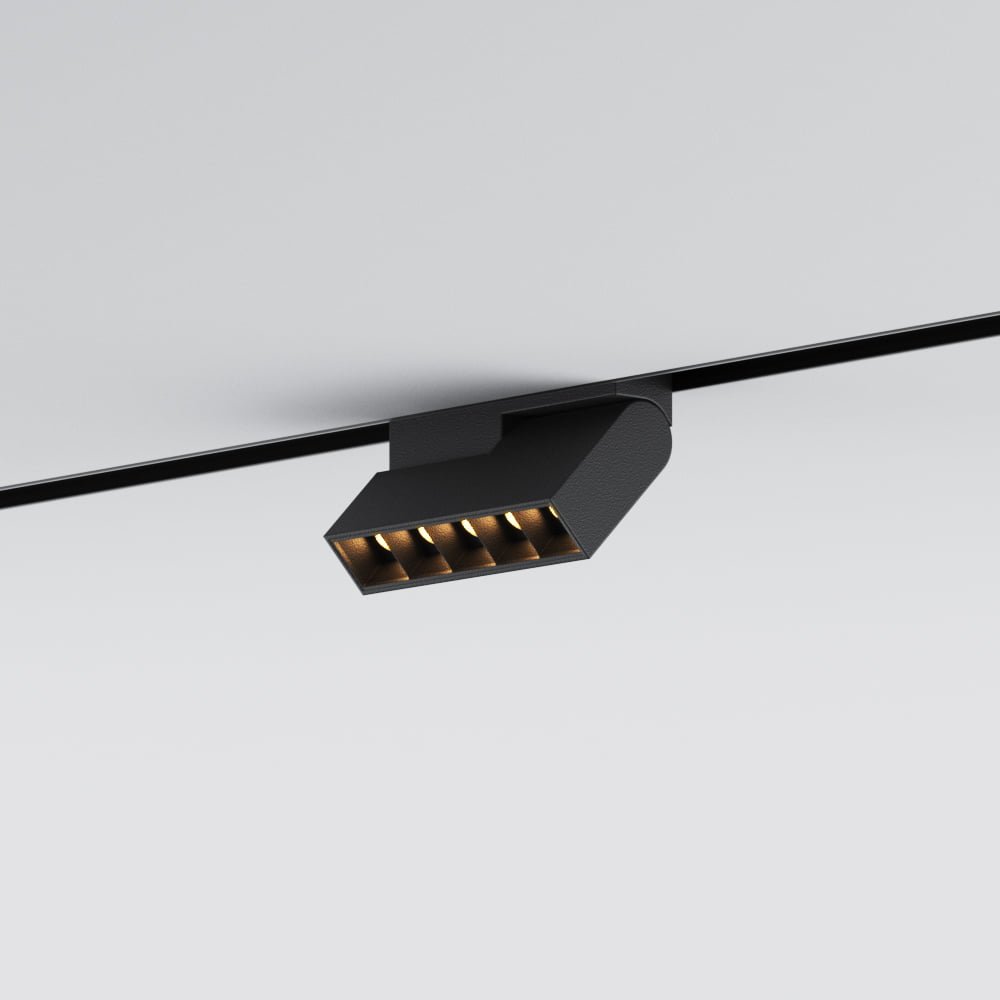

Compact multiple-emitter modules suited to controlled directional lighting layouts.
VERTICAL LIGHTING
Illuminate walls, display surfaces and vertical architectural details.
DECORATIVE / TASK LIGHTING
Suspended lighting elements for tables, islands, feature areas and task zones.
Module optics, CCT and control functions depend on the selected product version. Please confirm the required configuration before ordering.

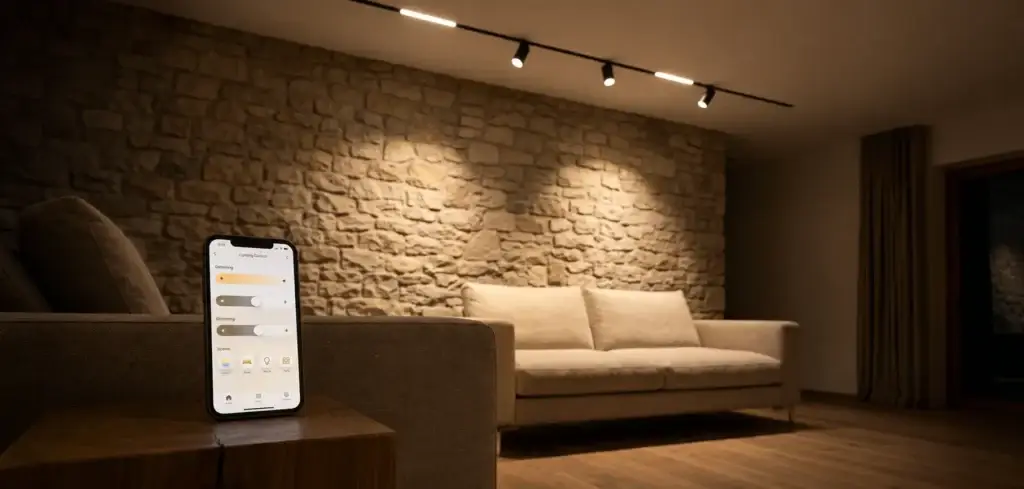

06 / SMART CONTROL
The right control architecture for each project.
DALI-BASED M20 CONFIGURATIONS
For compatible M20 DALI luminaires, two conductors carry 48V DC power and two carry the DALI bus. Addressing, grouping and scenes depend on the selected luminaire drivers and project controller.
DALI bus power must be provided by a suitable supply or by a control device with integrated bus power. KNX building control connects through a compatible KNX-to-DALI gateway.
Protocol support and formal third-party certification are distinct claims; confirm device-level documentation for each project.
Representative DALI topology. Tap the diagram to view it at full size. Final device selection and wiring vary by project.
01 / CONTROL OPTION
Addressable dimming and scene control with compatible M20 DALI luminaire versions.
02 / CONTROL OPTION
Room or building automation through a project-selected KNX-to-DALI gateway.
03 / CONTROL OPTION
Wireless control through verified compatible direct or DALI-based Casambi architectures.
04 / CONTROL OPTION
Selected compatible luminaires and controllers for wireless project requirements.
Non-dimming and selected 0–10V options may also be available in compatible product versions. Confirm driver, controller, gateways and topology when specifying the system.
07 / ARCHITECTURAL APPLICATIONS
One lighting system, adapted to different spaces.

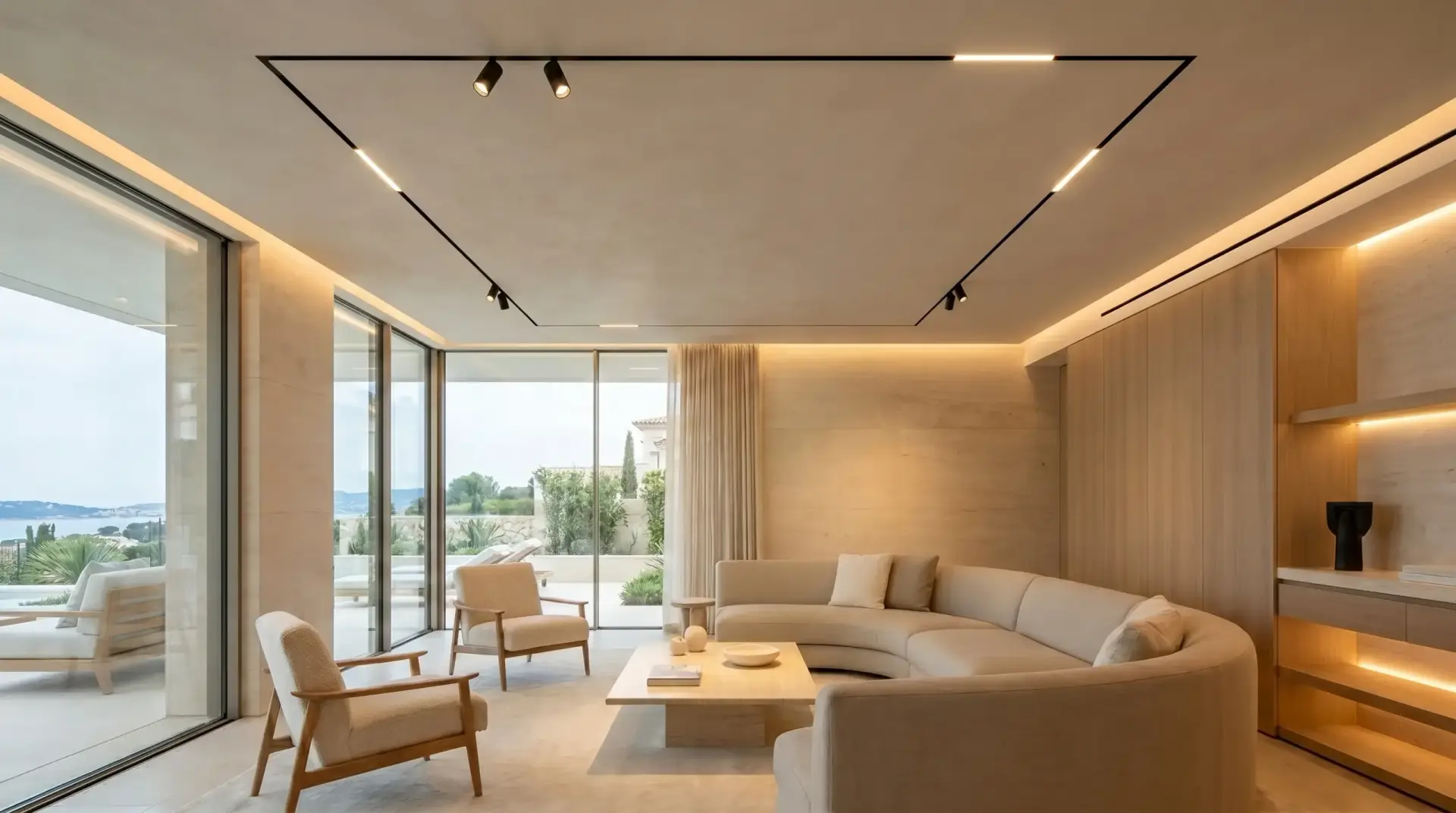

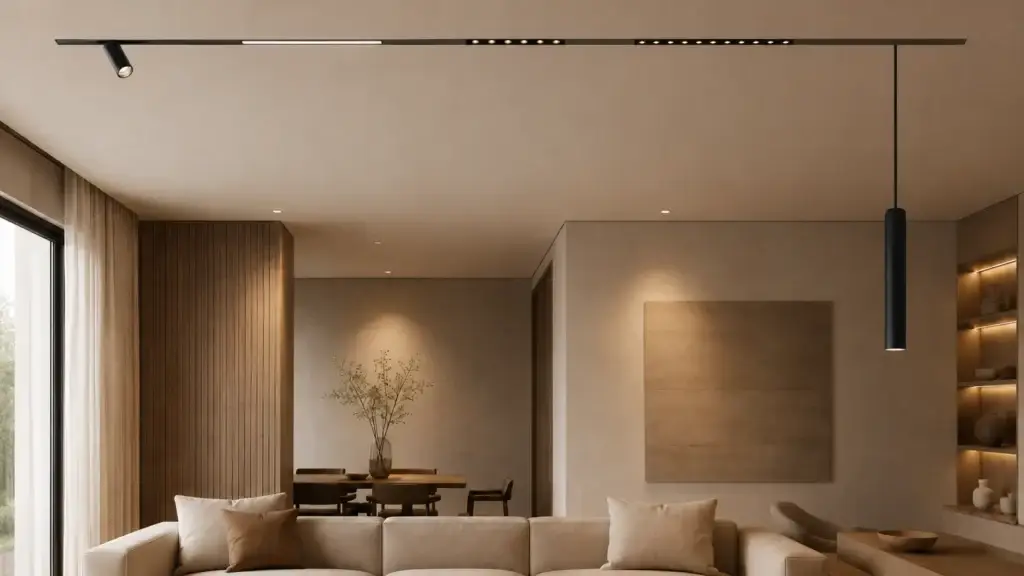

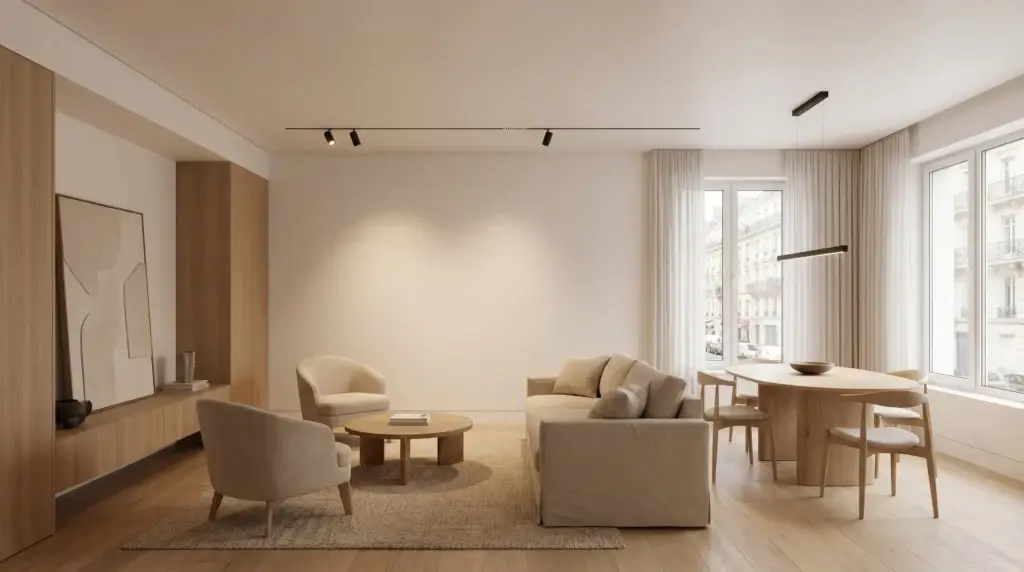

01 / RESIDENTIAL

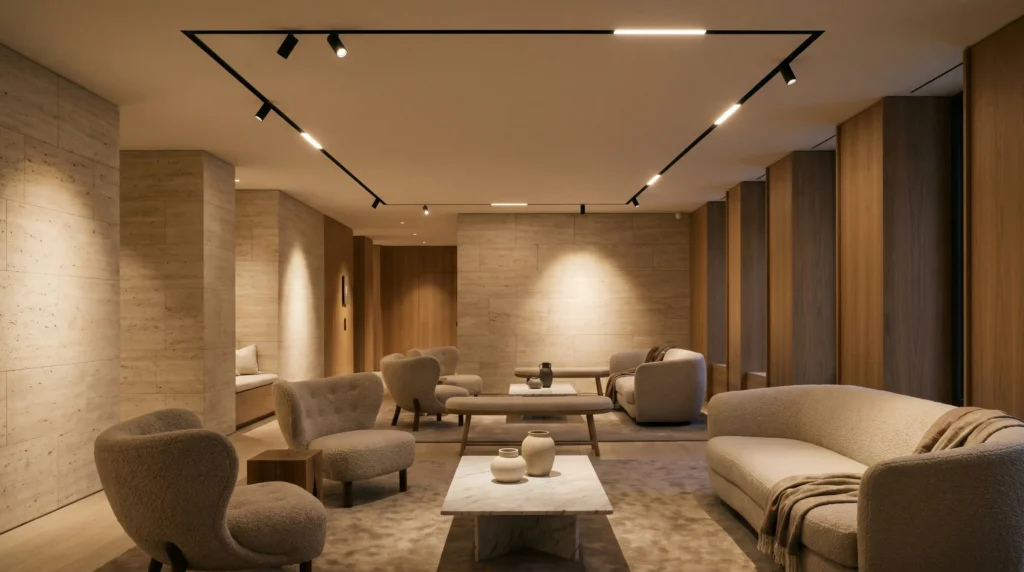

02 / HOSPITALITY

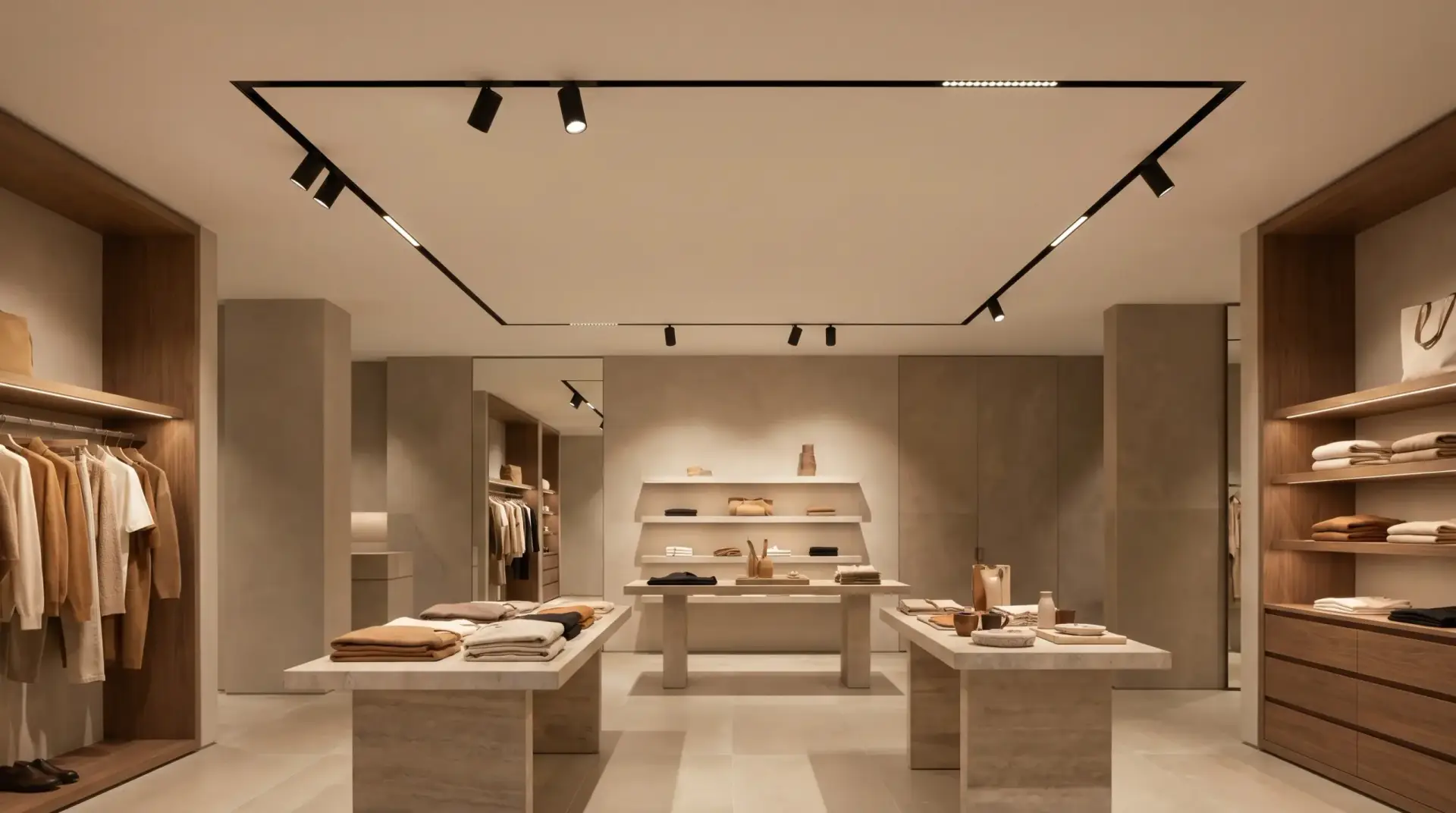

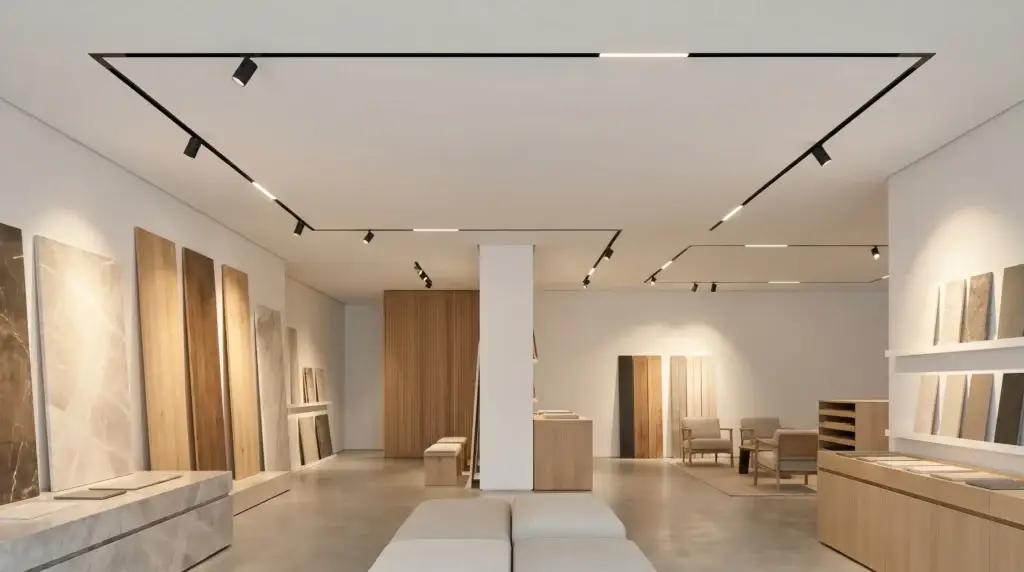

03 / RETAIL & SHOWROOM
08 / PROJECT SUPPORT
From system selection to samples and coordinated supply.
01 / PROJECT STEP
Share installation method, ceiling build-up, reflected ceiling plan and track layout.
02 / PROJECT STEP
Match M20 profiles, connectors, power supplies, lighting modules and required control route.
03 / PROJECT STEP
Confirm the approved product mix, light effects and actual control behaviour before project approval.
04 / PROJECT STEP
Finalize quantities, project accessories, lead-time assumptions and documentation for supply.
Send your ceiling plan, module requirements and preferred controls for a project-specific review.
09 / TECHNICAL FAQ
Essential answers for specifying the M20 system.
They are four installation profiles within the M20 magnetic track family: surface/suspended, trimless recessed, trimless 12 mm clip-in, and recessed with visible trim. Select the profile according to the ceiling structure and finishing method.
Yes. M20C is the clip-in trimless profile designed for 12 mm thick ceiling panels. Its technical drawing also includes local profile dimensions, which are not substitutes for the specified board thickness.
Compatible modules within the specified M20 system can be coordinated on the same track. Confirm electrical loading, track accessories and chosen luminaire versions before finalizing the layout.
No. Available control methods depend on the specific luminaire driver and system configuration. Select and verify control-compatible versions before ordering.
The illustrated SD-10048 compact power supply can be placed inside compatible M20A configurations. Other power arrangements require a project-specific review of track type, layout and electrical loading.
Do not assume cross-brand magnetic track compatibility. The mechanical interface, conductor layout, power architecture and control arrangement must be verified together.
