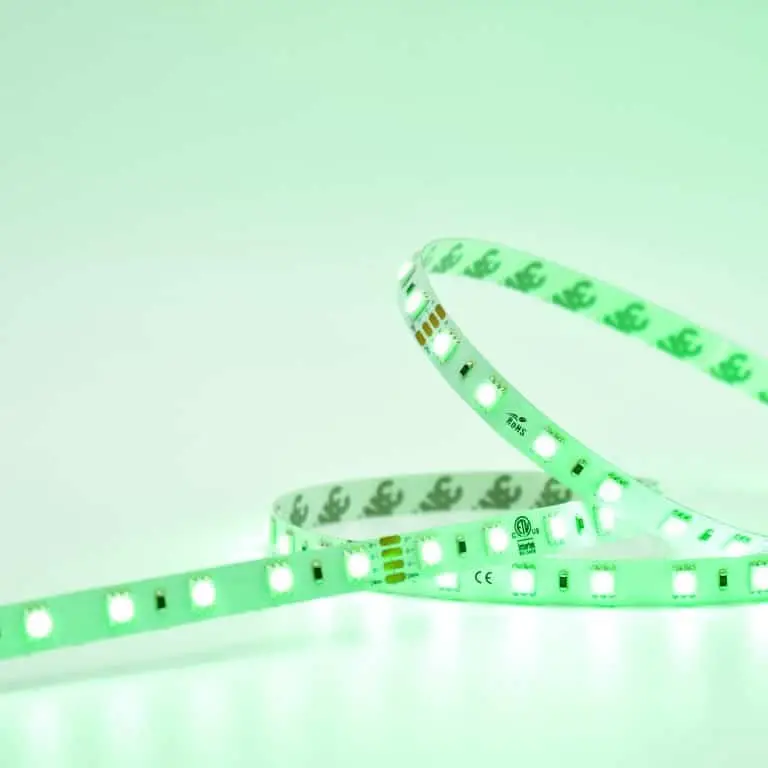

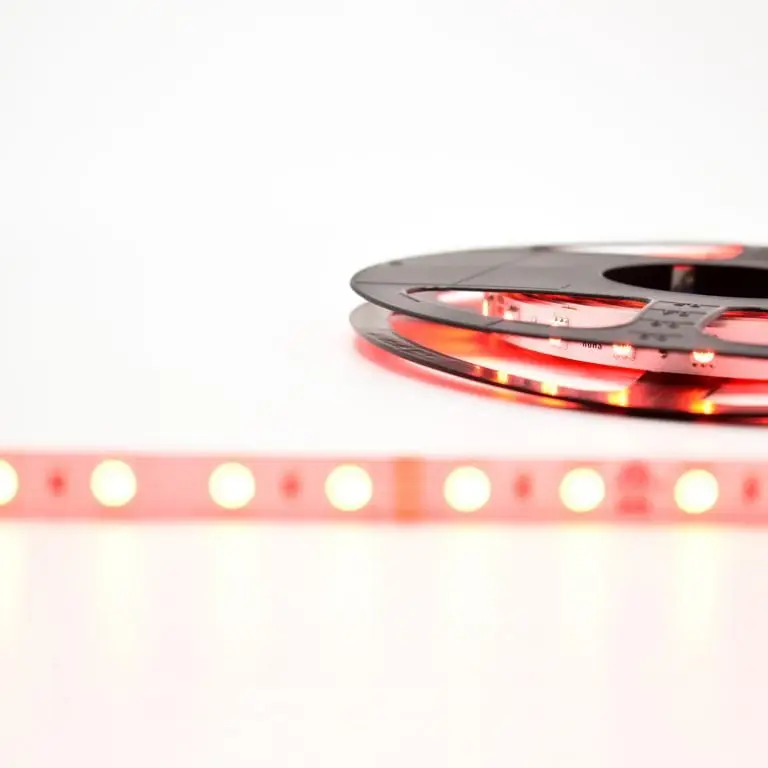

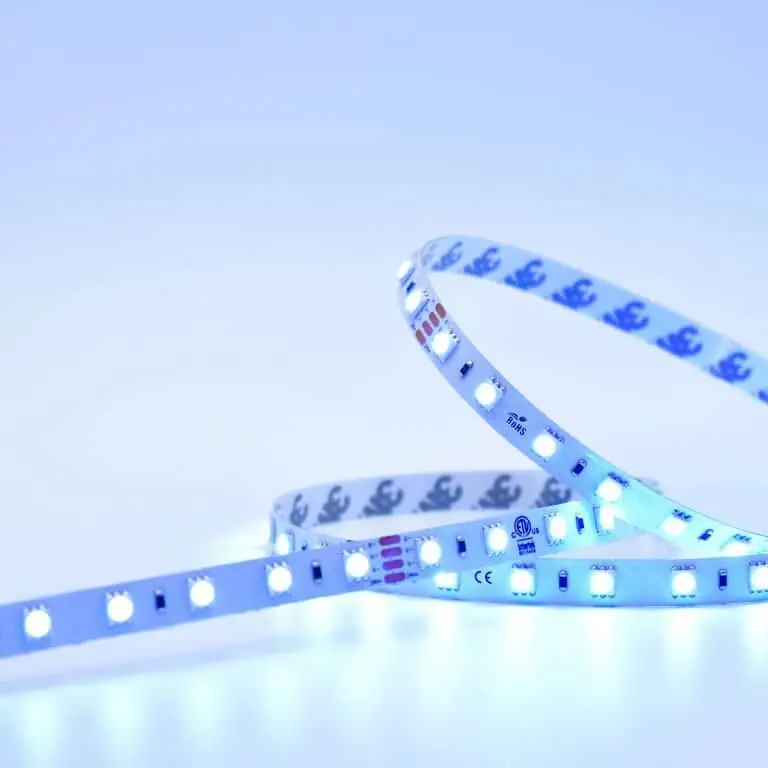

DC24V 5050 RGB LED Tape

  • Input Voltage: 24VDC
  • Beam Angle: 120°
  • CRI: 80+
  • Power: R 4.8W/M (1.46W/ft.);     G 4.8W/M (1.46W/ft.);     B 4.8W/M (1.46W/ft.);     RGB 14.4W/M (4.4W/ft)
  • Current: R 0.2A/m (0.061A/ft);     G 0.2A/m (0.061A/ft);     B 0.2A/m (0.061A/ft);     RGB 0.6A/m
  • (0.18A/ft)
  • Brightness: R 47lm/ft;     G 98lm/ft;     B 20lm/ft;     RGB 158lm/ft
  • Length/Reel: 5m(16.4ft)/50m/(164ft)
  • Cut Length: 100mm/unit (3.94in/unit)
  • IP Grade: IP33; IP55; IP65; IP67
  • Operating Temperature: -20℃~45℃
  • Environment Humidity: 40-70% RH
  • Dimming Method: 0-10V, RX, PWM,RF, Bluetooth, WIFI etc.
  • Certification: CE, UL, RoHS

Dimension

24v 5050 rgb led
